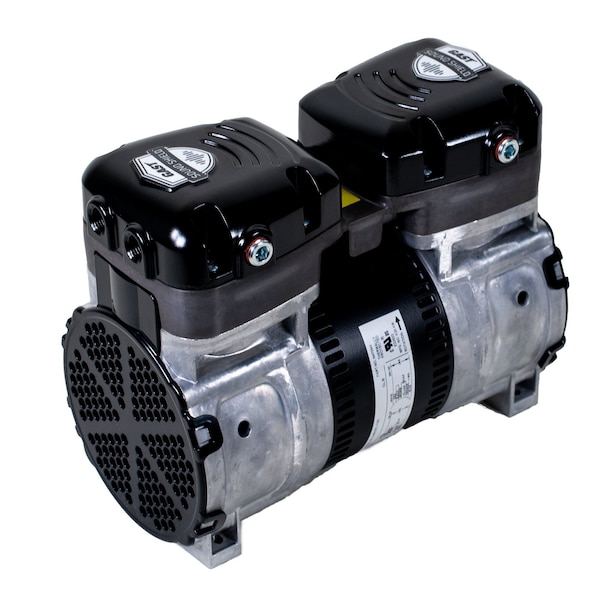

Piston Air Compressor, Rocking, 0.5 hp

  • Mfr # 87R642-PS103R-N470X

  • Zoro # G911899080

product price:
$
1,138.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
No Lubrication
Phase
Single
Voltage
115/120V AC, 230/240V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
87R642-PS103R-N470X
Zoro #
G911899080
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
9.54 in
Overall Height
7.88 in
Overall Width
5 in
Mounting Hole Diameter
1/4 in
Wire Rope Length
9.54 in
Length
9.54 in

Details

Item
Piston Air Compressor
Lubrication Type
No Lubrication
Phase
Single
Voltage
115/120V AC, 230/240V AC
Standards
CE, UL Listed
Life Expectancy
16,000 hr
Includes Sound Shield
Sound Shield Included
Output Power
0.5 hp
Flow Rate @ 0 psi @ 50 Hz
3.5 cfm
Mounting Style
Rigid Base
Maximum Speed
1,725 RPM
Minimum Operating Temperature
32 Degrees F
Plug Type
Three Prong
Outlet Type
NPT
Thermal Protection
Yes
Piston Type
Rocking
Duty Cycle
Continuous
Free Air Flow Rate
3.6 cfm, 4.3 cfm
Maximum Operating Temperature
104 Degrees F
Flow Rate @ 40 psi @ 50 Hz
2 cfm
Current Rating
2.6 A, 2.8 A, 5.1 A, 5.7 A
Flow Rate @ 50 psi @ 50 Hz
1.8 cfm
Nominal Efficiency Rating
42.0
Maximum Vacuum
24.75 in Hg
Outlet Gender
Female
Motor Design
Capacitor Start
Control Type
Manual
Sound Level
54.5 dBA
Power Source
Corded Electric
Frequency
50 Hz, 60 Hz
Exhaust Location
Top
Electrical Connection
Wired Leads
Series
87R
Pump Type
Rocking Piston
Valve Material
Stainless Steel
Inlet Gender
Female
Full-Load Air Consumption
4.3 cfm
Valve Type
Check, Relief
Compressor/Pump Enclosure Material
Aluminum; Ferrous Metals
Maximum Continuous Pressure
125 psi
Cylinder Material
Aluminum
Flow Rate @ 20 psi @ 50 Hz
2.8 cfm
Inlet Type
NPT
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 87R642-PS103R-N470X is an oil-free piston air compressor with a rocking-piston design. It operates on 115/120V AC, 230/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/2 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 3.6 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 24.75 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 2.6 A, 2.8 A, 5.1 A, 5.7 A, and a measured sound level of 54.5 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.54 x 5 x 7.88 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
