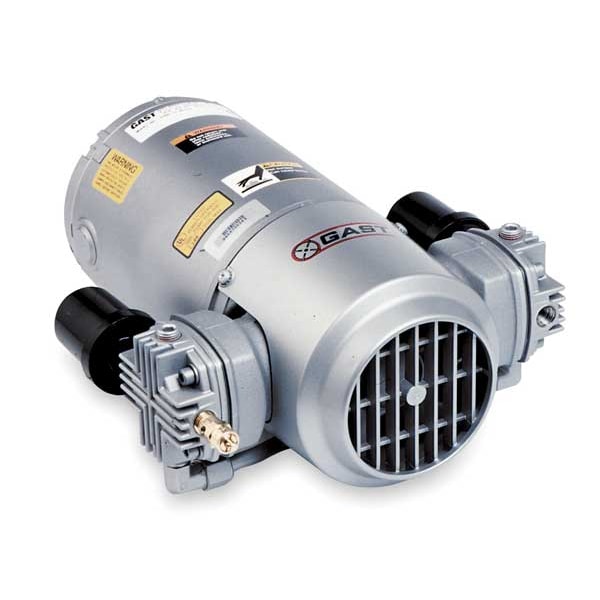

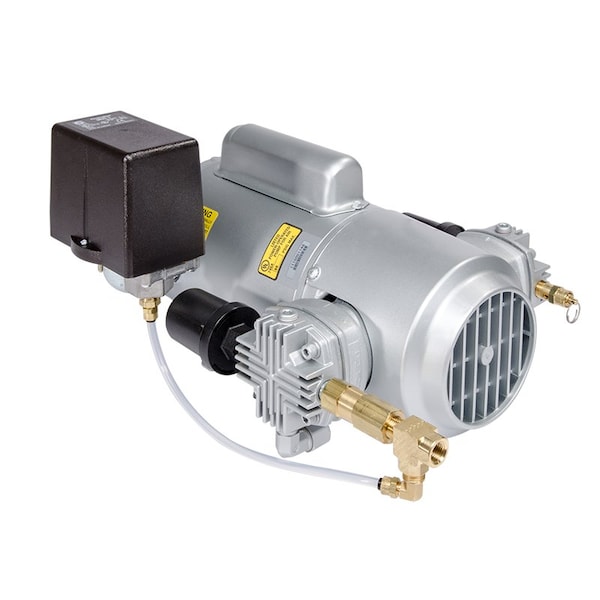

Gast Piston Air Compressor, 1/3HP, 115V, 1Ph 3LBA-10-M300AX - main

Piston Air Compressor, 1/3HP, 115V, 1Ph

  • Mfr # 3LBA-10-M300AX

  • Zoro # G3744772

product price: $1,085.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/3 hp
Phase
Single
Voltage
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3LBA-10-M300AX
Zoro #
G3744772
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
17.25 in
Overall Height
11.25 in
Overall Width
14.25 in

Details

Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/3 hp
Phase
Single
Voltage
115V AC
Sound Rating
76
Max. PSI Cont./Int.
50/50
Cylinder Material
Aluminum
Temp. Range
32 Degrees to 104 Degrees F
Valve
Stainless Steel
Free Air CFM @ 20 PSI
2.3
Free Air CFM @ 40 PSI
2
Free Air CFM @ 50 PSI
1.8
Thermal Protection
Yes
Standards
CSA, UL
Application
Industrial
Hz
60
RPM
1725
Design
Piston
Full Load Amps
6.6
Finish
Paint
Motor Type
Electric
Power Cord
No
Free Air CFM @ 0 PSI
2.3
Free Air CFM @ 100 PSI
0
Power Source
Corded Electric
Pump Type
Piston
Output Power
0.333 hp
Free Air Flow Rate
3 cfm
Inlet Type
NPT
Current Rating
6.6 A
Air Tank Style
Tankless
Sound Level
76 dBA
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Piston Type
Reciprocating
Control Type
Pressure Switch
Outlet Type
NPT
Maximum Intermittent Pressure
50 psi
Frequency
60 Hz
Maximum Continuous Pressure
50 psi
Maximum Speed
1,725 RPM
Electrical Connection
Wired Leads
Valve Material
Stainless Steel

Description

Piston Air Compressor, Lubrication Type Oil Free, Number of Cylinders 2, Output Power 0.333 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Free Air Flow Rate 3 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
