Shop GAST

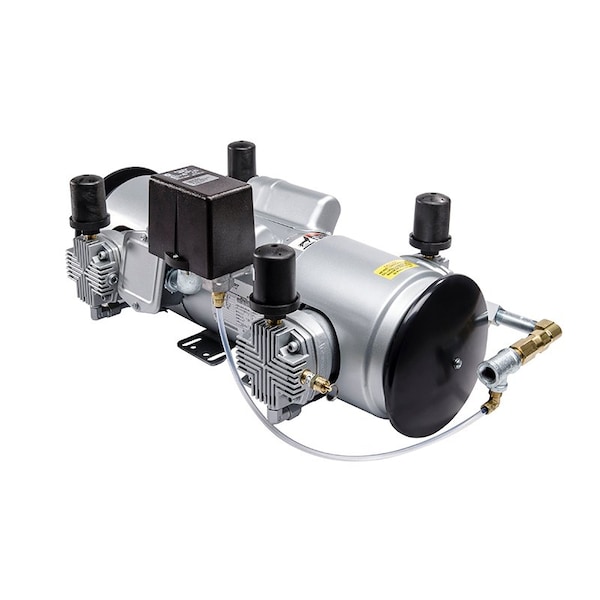

Piston Air Compressor Pump, 8L Series, Reciprocating, 2 hp, 10.5 cfm, 50 psi, Tankless

  • Mfr # 8LDF-46S-M850X

  • Zoro # G511677651

product price:  $3,421.99
/ea
Free Shipping & Returns

Key Features

Number of Cylinders
2
Phase
Single
Voltage
110/220V AC, 115/230V AC
Inlet Size
1/2 in
Outlet Size
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8LDF-46S-M850X
Zoro #
G511677651
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/2 in
Outlet Size
3/8 in
Overall Length
25.9 in
Overall Height
9.8 in
Overall Width
12.6 in

Details

Item
Piston Air Compressor
Number of Cylinders
2
Phase
Single
Voltage
110/220V AC, 115/230V AC
Thermal Protection
Yes
Standards
UL 1450 Listed
Finish
Anodized
Valve Type
Check
Minimum Operating Temperature
41 Degrees F
Outlet Type
NPT
Life Expectancy
1 yr
Power Source
Corded Electric
Pump Type
Piston
Electrical Connection
Cord with Plugs
Includes Sound Shield
Sound Shield Not Included
Air Tank Style
Tankless
Exhaust Location
Top
Maximum Operating Temperature
104 Degrees F
Output Power
2 hp
Control Type
Pressure Switch
Mounting Style
Rigid Surface
Series
8L
Valve Material
Stainless Steel
Frequency
50/60 Hz
Plug Type
Three Prong
Sound Level
81 dBA
Flow Rate @ 50 psi @ 50 Hz
10 cfm
Free Air Flow Rate
10.5 cfm
Maximum Continuous Pressure
50 psi
Duty Cycle
Continuous
Maximum Intermittent Pressure
50 psi
Maximum Speed
1,725 RPM
Inlet Type
NPT
Piston Type
Reciprocating
Power Source - TS Only
Corded Electric

Description

The GAST 8LDF-46S-M850X is a tankless, corded electric piston air compressor/pump with a reciprocating 2-cylinder design. It is built for continuous duty operation and uses a pressure switch for control. With a free air flow rate of 10.5 cfm and 10 cfm at 50 psi at 50 Hz, this unit is suited for general compressed air and vacuum pump use where a compact, rigid-surface-mounted compressor is needed.

Key Features:

  • Tankless design: Operates without an air tank for direct air delivery from the pump.
  • Reciprocating piston pump: Piston-type pump with 2 cylinders.
  • Continuous duty: Designed to run continuously during operation.
  • Air flow: 10.5 cfm free air flow rate; 10 cfm at 50 psi at 50 Hz.
  • Pressure rating: Maximum continuous pressure of 50 psi and maximum intermittent pressure of 50 psi.
  • Motor and power: 2 hp, single-phase, 50/60 Hz, corded electric with three-prong plug; voltage listed as 110/220V AC and 115/230V AC.
  • Connections: 1/2 in NPT inlet and 3/8 in NPT outlet.
  • Construction details: Anodized finish, stainless steel check valve, and top exhaust location.
  • Operating limits: Temperature range of 41 to 104 degrees F; maximum speed 1,725 RPM.
  • Mounting and size: Rigid surface mounting; overall dimensions are 25.9 in L x 12.6 in W x 9.8 in H.
  • Other attributes: Thermal protection included, sound level of 81 dBA, sound shield not included, UL 1450 Listed, Series 8L.
