Shop GAST

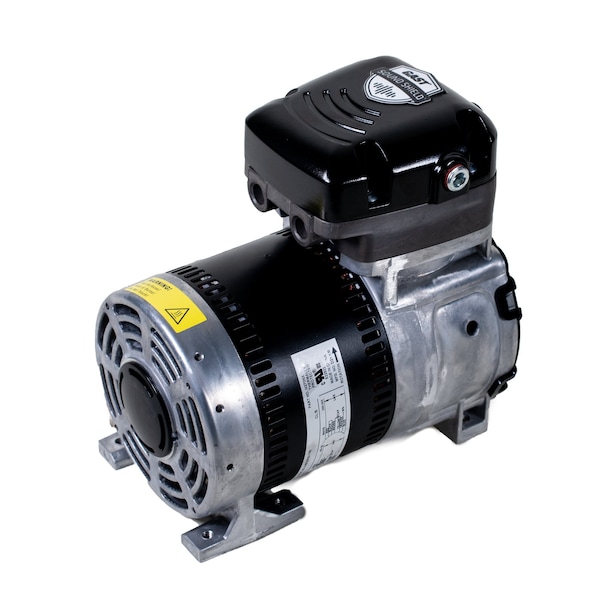

Piston Air Compressor, Rocking, 0.25 hp

  • Mfr # 86R130-PS101-N270X

  • Zoro # G611899052

product price:
$
972.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
No Lubrication
Phase
Single
Voltage
100/120V AC, 200/240V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
86R130-PS101-N270X
Zoro #
G611899052
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
7.71 in
Overall Height
7.88 in
Overall Width
5.08 in
Mounting Hole Diameter
1/4 in
Wire Rope Length
7.71 in
Length
7.71 in

Details

Item
Piston Air Compressor
Lubrication Type
No Lubrication
Phase
Single
Voltage
100/120V AC, 200/240V AC
Flow Rate @ 0 psi @ 50 Hz
1.2 cfm
Valve Material
Stainless Steel
Outlet Type
NPT
Flow Rate @ 40 psi @ 50 Hz
0.7 cfm
Maximum Vacuum
26.2 in Hg
Maximum Speed
1,725 RPM
Valve Type
Check, Relief
Compressor/Pump Enclosure Material
Aluminum; Ferrous Metals
Inlet Gender
Female
Flow Rate @ 50 psi @ 50 Hz
0.6 cfm
Motor Design
Capacitor Start
Inlet Type
NPT
Standards
CE, UL Listed
Duty Cycle
Continuous
Power Source
Corded Electric
Output Power
0.25 hp
Control Type
Manual
Exhaust Location
Top
Plug Type
Three Prong
Nominal Efficiency Rating
42.0
Minimum Operating Temperature
32 Degrees F
Cylinder Material
Aluminum
Pump Type
Rocking Piston
Series
86R
Electrical Connection
Wired Leads
Includes Sound Shield
Sound Shield Included
Full-Load Air Consumption
1.44 cfm
Outlet Gender
Female
Maximum Operating Temperature
104 Degrees F
Flow Rate @ 20 psi @ 50 Hz
1.1 cfm
Thermal Protection
Yes
Frequency
50 Hz, 60 Hz
Free Air Flow Rate
1.17 cfm, 1.44 cfm
Sound Level
45.9 dBA
Mounting Style
Rigid Base
Maximum Continuous Pressure
125 psi
Piston Type
Rocking
Life Expectancy
16,000 hr
Current Rating
1.0 A, 1.5 A, 1.8 A, 3.1 A
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 86R130-PS101-N270X is an oil-free piston air compressor with a rocking-piston design. It operates on 100/120V AC, 200/240V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.17 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.2 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.0 A, 1.5 A, 1.8 A, 3.1 A, and a measured sound level of 45.9 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.71 x 5.08 x 7.88 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
