Shop GAST

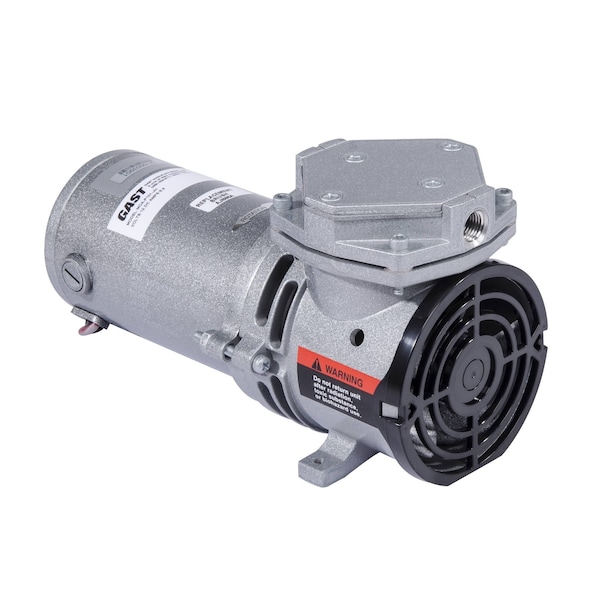

Compressor/Vacuum Pump, 0.56 in L, 24V DC

  • Mfr # MOA-P101-JK

  • Zoro # G722588364


product price:
$
789.99
/ea
Free Shipping & Returns

Key Features

Output Power
0.12 hp
Wattage
0.05 kW
Series
MOA-MAA
Outlet Gender
Female
Free Air Flow Rate
1 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MOA-P101-JK
Zoro #
G722588364
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size
1/4 in
Overall Width
4.28 in
Inlet Size
1/4 in
Wire Rope Length
0.56 in
Overall Length
0.56 in
Length
0.56 in

Details

Output Power
0.12 hp
Wattage
0.05 kW
Series
MOA-MAA
Item
Compressor/Vacuum Pump
Outlet Gender
Female
Free Air Flow Rate
1 cfm
Maximum Continuous Pressure
50 psi
Maximum Speed
1,800 RPM
Maximum Pressure
50 psi
Frequency
60 Hz
Standards
CE, UKCA
Housing Material
EPDM, Thermoplastic Polymer
Weight
5.3 lb
Outlet Type
NPT
Inlet Type
NPT
Maximum Vacuum
28 in Hg
Phase
Single
Current Rating
3.2 A
Voltage
24V DC
Inlet Gender
Female
Sound Level
70 dB

Description

The Gast MOA-P101-JK is a piston air compressor/vacuum pump. It runs on 24V DC power at a rated 0.12 hp output. It provides a free-air flow rate of 1 cfm, a maximum continuous pressure of 50 psi, and a maximum vacuum of 28 in Hg. It has a maximum speed of 1,800 RPM. Air connections are 1/4 in NPT inlet and outlet.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
