Shop GAST

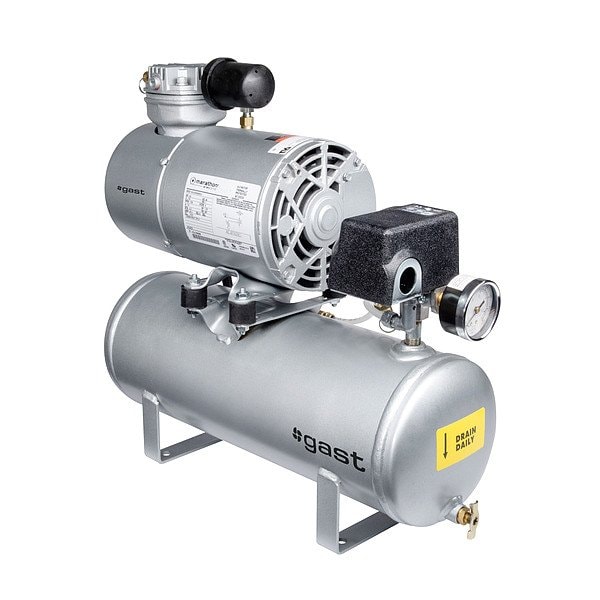

Piston Air Compressor, Size 1/4", 1725 RPM

  • Mfr # 1HAB-11T-M100X

  • Zoro # G1175995

product price:
$
1,591.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
1
HP
1/6
Phase
Single
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1HAB-11T-M100X
Zoro #
G1175995
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
1
HP
1/6
Phase
Single
Voltage
115V AC
Max. Pressure
100 psi
Weight
49 lb.
Includes
Pressure Switch; ASME Coded Receiver Tank With Manual Drain; Pressure Safety Valve (ASME); Pressure Gauge; Shut Off Valve and Check Valve
Free Air CFM @ Max. Pressure
1.3
Standards
NFPA 13
Cylinder Material
Aluminum
Finish
Painted
Maximum Continuous Pressure
100 psi
Minimum Operating Temperature
32 Degrees F
Free Air Flow Rate
1.3 cfm
Air Tank Style
Horizontal
Output Power
0.12 hp
Maximum Operating Temperature
104 Degrees F
Pump Type
Piston
Inlet Type
NPT
Maximum Speed
1,725 RPM
Piston Type
Reciprocating
Maximum Intermittent Pressure
100 psi
Outlet Type
NPT
ASME Tank
No
Control Type
Pressure Switch
Duty Cycle
Continuous
Thermal Protection
Yes
Power Source
Corded Electric
Frequency
60 Hz
Series
Gast
Engine Enclosure Material
Steel
Outlet Gender
Female
Enclosure Type
Clean Dust Free
Valve Material
Stainless Steel
Inlet Gender
Female
Exhaust Location
Side
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Motor Design
Split-Phase Induction
Life Expectancy
16,000 hr
Valve Type
Reed
Electrical Connection
Screw Terminal
Sound Level
70 dBA
Current Rating
3.8 A
Mounting Style
Foot Mount
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 1HAB-11T-M100X is an oil-free, single-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 0.12 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.3 cfm, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1,725 RPM, a full-load current of 3.8 A, and a measured sound level of 70 dBA. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an induction motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.53 x 8.3 x 16.66 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
