Piston Air Compressor, Size 1/4", 2000 RPM
Mfr # PCA-10
Zoro # G1176001
product price:
$
1,024.99
/ea
Free Shipping & Returns
Key Features
Lubrication Type
Oilless
Number of Cylinders
2
Voltage
115V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PCA-10
- Zoro #
- G1176001
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 9.881 in
- Overall Height
- 6.889 in
- Overall Width
- 6.102 in
- Mounting Hole Diameter
- 27/100 in
- Stroke Length
- 3/4 in
- Wire Rope Length
- 9.881 in
- Length
- 9.881 in
Description

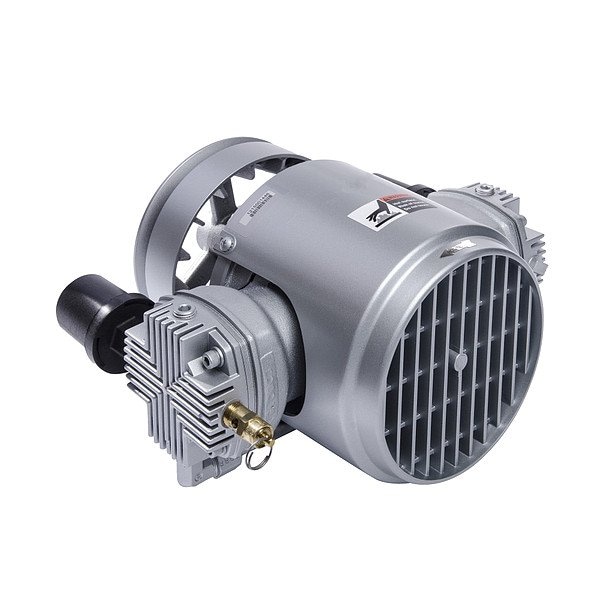

The Gast PCA-10 is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115V AC power at a rated 1.7 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 6.1 cfm, and a maximum continuous pressure of 125 psi. It has a maximum speed of 2,000 RPM, and a measured sound level of 84 dBA. The operating temperature range is 41 to 104°F. Construction includes an aluminum cylinder, and stainless steel valves. Enclosure type is clean dust free. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.881 x 6.102 x 6.889 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
