Shop GAST

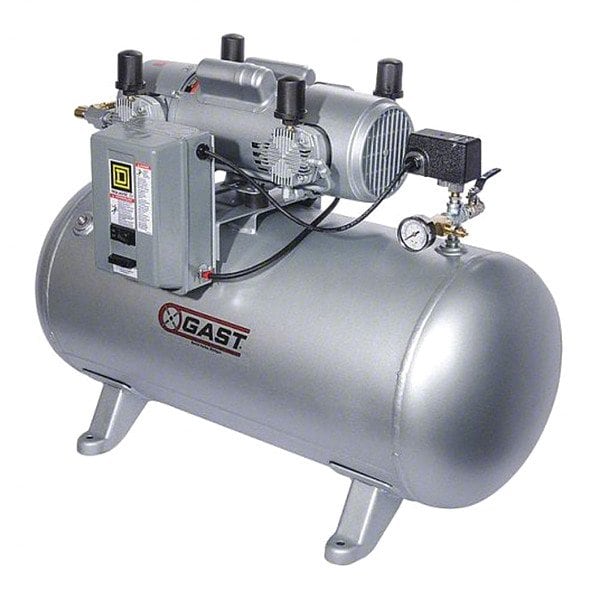

Piston Air Compressor, Size 3/8", 1725 RPM

  • Mfr # 7LDE-11T-M750X

  • Zoro # G1175940

product price:
$
5,290.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
4
HP
1.5
Phase
Single
Voltage
115/208 to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7LDE-11T-M750X
Zoro #
G1175940
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
38 in
Overall Height
28.6 in
Overall Width
17 in
Tank Size
30 gal.
Air Tank Size
30 gal
Mounting Hole Diameter
11/20 in
Stroke Length
5/8 in
Wire Rope Length
38 in
Length
38 in

Details

Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
4
HP
1.5
Phase
Single
Voltage
115/208 to 230V AC
Max. Pressure
50 psi
Includes
Pressure Switch; ASME Coded Receiver Tank With Manual Drain; Pressure Safety Valve (ASME); Pressure Gauge; Shut Off Valve and Check Valve
Weight
155 lb.
Standards
NFPA 13
Free Air CFM @ Max. Pressure
10.2
Finish
Painted
Cylinder Material
Aluminum
Air Tank Style
Horizontal
Maximum Continuous Pressure
50 psi
Output Power
1.5 hp
Free Air Flow Rate
10.2 cfm
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Inlet Type
NPT
Maximum Speed
1,725 RPM
Pump Type
Piston
Piston Type
Reciprocating
Maximum Intermittent Pressure
50 psi
Outlet Type
NPT
ASME Tank
Yes
Frequency
60 Hz
Control Type
Pressure Switch
Series
Gast
Thermal Protection
Yes
Power Source
Corded Electric
Duty Cycle
Continuous
Engine Enclosure Material
Steel
Valve Material
Stainless Steel
Exhaust Location
Side
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Inlet Gender
Female
Outlet Gender
Female
Enclosure Type
Clean Dust Free
Electrical Connection
Screw Terminal
Life Expectancy
16,000 hr
Valve Type
Reed
Motor Design
Capacitor Start
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 7LDE-11T-M750X is an oil-free, four-cylinder piston air compressor with a reciprocating design. It operates on 115/208 to 230V AC single-phase power at 60 Hz at a rated 1.5 hp output. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 10.2 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,725 RPM. The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a capacitor-start motor, and stainless steel valves. Enclosure type is clean dust free. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 38 x 17 x 28.6 in (L x W x H). Duty cycle: continuous. Rated life expectancy: 16,000 hr.
