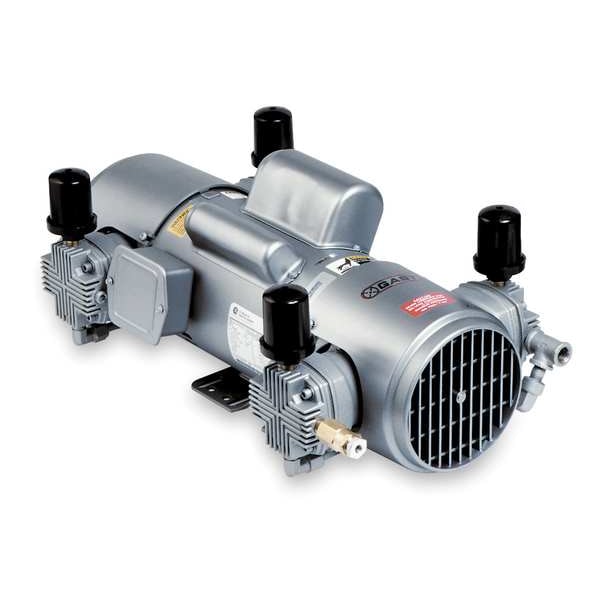

Piston Air Compressor/Vacuum Pump, 2HP

GAST| Zoro #: G2159001| Mfr #: 8HDM-251-M853

$2087.92 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2159001 Mfr #: 8HDM-251-M853
Finish: Gray PaintTemp. Range: 32 Degrees To 104 Degrees F
Lubrication Type: Oil-LessValve: Stainless Steel
RPM: 1725Item: Piston Air Compressor/Vacuum Pump
Overall Width: 12-3/8"HP: 2
Overall Length: 22-3/8"Full Load Amps: 6.6/3.3
Overall Height: 8-3/4"Free Air CFM @ 50 PSI: 8.75
Motor Type: ODPFree Air CFM @ 20 PSI: 9.8
Outlet Size: 3/8" NPTMax. PSI Cont./Int.: 100/100
Free Air CFM @ 100 PSI: 7.00Inlet Size: 3/8" NPT
Hz: 60Sound Rating: 74 dBA
Cylinder Material: AluminumStandards: CE
Thermal Protection: AutomaticFree Air CFM @ 0 PSI: 11.00
Phase: 3Voltage: 230/460VAC
Number of Cylinders: 4Country of Origin (subject to change): United States

Product Description

Piston Air Compressor/Vacuum Pump, 2 HP, Voltage 230/460VAC, 60 Hz, 3 Phase, Full Load Amps 6.6/3.3, Inlet Size 3/8 In. NPT, Outlet Size 3/8 In. NPT, Max. PSI Cont./Int. 100/100, Free Air CFM @ 50 PSI 8.75, Overall Length 22-3/8 In., Overall Width 12-3/8 In., Overall Height 8-3/4 In., Cylinder Material Aluminum, Number of Cylinders 4, Motor Type ODP, 1725 RPM, 74 dBA Sound Rating, Lubrication Type Oil-Less, Finish Gray Paint, Valve Stainless Steel, Standards CE
