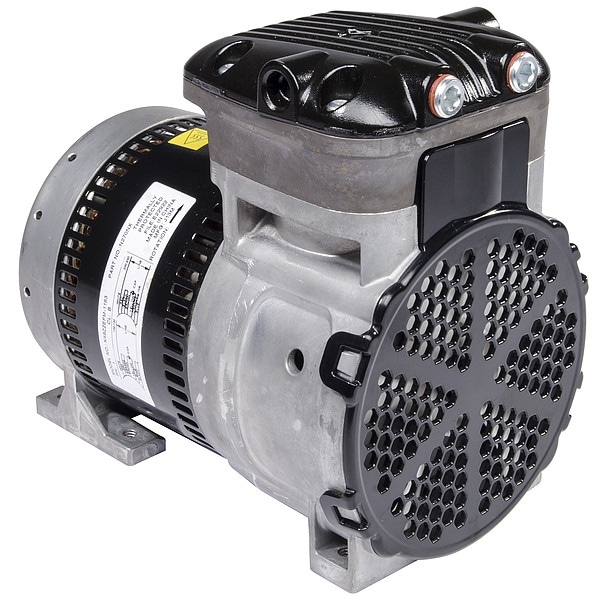

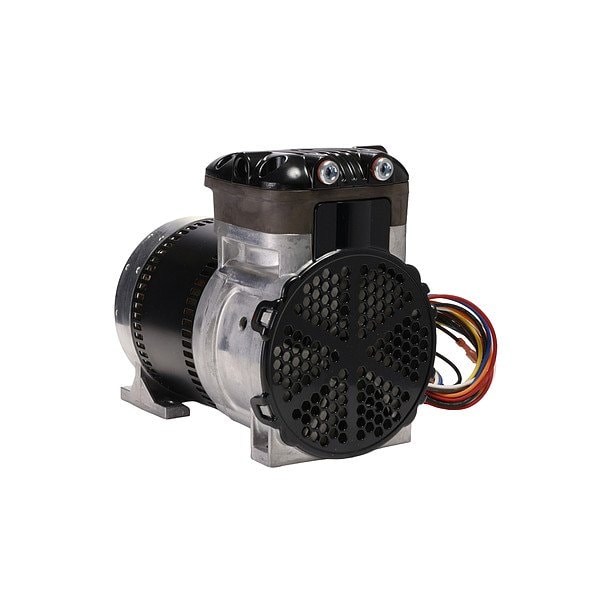

Rocking Piston Compressor Vacuum Pump
- Mfr # 86R130-101-N270X
- Zoro # G306003054
product price:
$
635.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Phase
Single
Voltage
115/230V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
7.71 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 86R130-101-N270X
- Zoro #
- G306003054
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Inlet Size
- 1/4 in
- Outlet Size
- 1/4 in
- Overall Length
- 7.71 in
- Overall Height
- 7.08 in
- Overall Width
- 5.08 in
- Wire Rope Length
- 7.71 in
- Length
- 7.71 in
Description
The Gast 86R130-101-N270X is a rocking piston compressor vacuum pump. It operates on 115/230V AC single-phase power at 50 Hz, 60 Hz at a rated 1/4 hp output, in a tankless configuration. It provides a free-air flow rate of 1.45 cfm, a maximum continuous pressure of 125 psi, and a maximum vacuum of 26.2 in Hg. It has a maximum speed of 1,725 RPM, a full-load current of 1.8/1.0 A, 3.1/1.5 A, and a measured sound level of 65 dBA. The operating temperature range is 32 to 104°F. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 7.71 x 5.08 x 7.08 in (L x W x H). Duty cycle: continuous.
