  11. Rocking Piston Air Comp, 1/4HP, 100/100psi

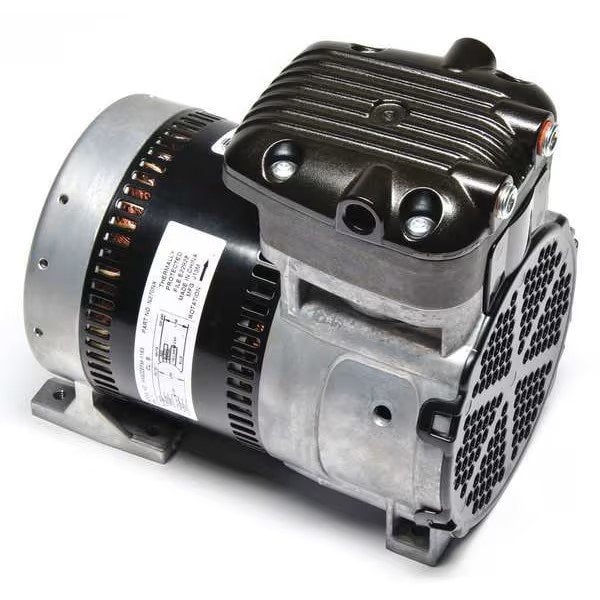

Gast Rocking Piston Air Comp, 1/4HP, 100/100psi 87R135-101-N270X - main

Rocking Piston Air Comp, 1/4HP, 100/100psi

  • Mfr # 87R135-101-N270X

  • Zoro # G0243936

product price: $588.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/4 hp
Phase
Single
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87R135-101-N270X
Zoro #
G0243936
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
7.75 in
Overall Height
7.125 in
Overall Width
5.125 in

Details

Item
Rocking Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
1
HP
1/4 hp
Phase
Single
Voltage
115/230V AC
Sound Rating
65 dBA
Free Air CFM @ 10 In. Hg
1.1
Free Air CFM @ 100 PSI
0.7
Max. Vacuum
29.5 in Hg
Free Air CFM @ 50 PSI
1.1
RPM
1725/1425
Hz
50/60
Free Air CFM @ 0 PSI
2.0
Free Air CFM @ 20 PSI
1.5
Free Air CFM @ 0 In. Hg
2.0
Max. PSI Cont./Int.
100/100
Finish
Paint
Thermal Protection
Automatic Reset
Free Air CFM @ 40 PSI
1.3
Application
Industrial
Standards
CE, CUR
Valve
Stainless Steel
Cylinder Material
Aluminum
Full Load Amps
2.6/1.4
Free Air CFM @ 20 In. Hg
0.4
Motor Type
Electric
Temp. Range
0 Degrees to 40 Degrees C
Design
Rocking Piston
Power Cord
No
Inlet Type
NPT
Maximum Operating Temperature
104 Degrees F
Free Air Flow Rate
2 cfm
Maximum Continuous Pressure
100 psi
Pump Type
Rocking Piston
Maximum Vacuum
26.7 in Hg
Minimum Operating Temperature
41 Degrees F
Maximum Speed
1,725 RPM
Outlet Type
NPT
Current Rating
1.4 A, 1.9 A, 2.6 A, 3.5 A
Frequency
50 Hz, 60 Hz
Sound Level
65 dBA
Piston Type
Rocking
Valve Material
Stainless Steel
Output Power
0.25 hp
Maximum Intermittent Pressure
100 psi
Air Tank Style
Tankless

Description

Rocking Piston Air Compressor, Lubrication Type Oil Free, Number of Cylinders 1, Output Power 0.25 hp, Phase Single, Voltage 115/230V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum 26.7 in Hg, Free Air Flow Rate 2 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Outlet Size 1/4 in, Outlet Type NPT
