Gast

Rocking Piston Vacuum Pump, 7-5/64"H

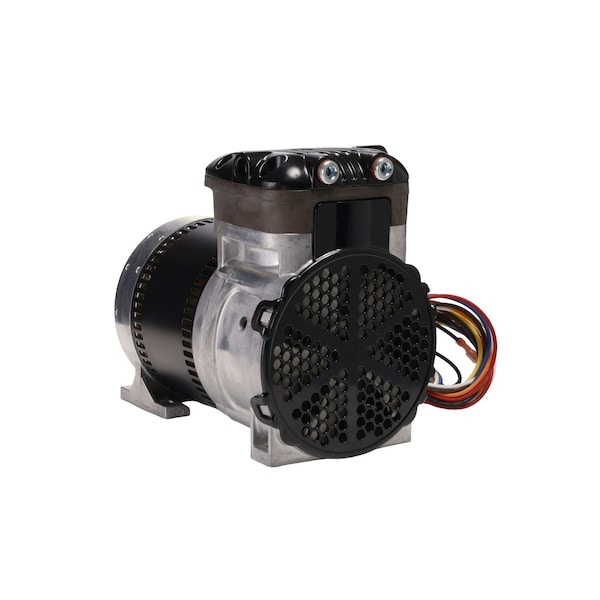

Gast Rocking Piston Vacuum Pump, 7-5/64"H 86R123-101-N170X
Tap to zoom
Hover or click to zoom
$494.46
  • Item: Rocking Piston Vacuum Pump
  • HP: 1/8 hp
  • Voltage: 115/230V AC
See full product details
This item ships free.
Total: $494.46

Gast #86R123-101-N170X Specifications

  • Item: Rocking Piston Vacuum Pump
  • HP: 1/8 hp
  • Voltage: 115/230V AC
  • Full Load Amps: 1.4/.8
  • Max. PSI Cont./Int.: 125
  • Free Air CFM @ 0 PSI: 1.1
  • Free Air CFM @ 50 PSI: 0.6
  • Max. Vacuum: 27 in Hg
  • Free Air CFM @ 0 In. Hg: 1.0
  • Free Air CFM @ 10 In. Hg: 1.0
  • Overall Height: 7 5/64 in
  • Application: Aeration, Beverage Dispensing, Nitrogen Generation, Tire Inflation
  • RPM: 1725
  • Free Air CFM @ 100 PSI: 0.3
  • Phase: 1
  • Inlet Size: 1/4 in NPT
  • Free Air CFM @ 40 PSI: 0.6
  • Sound Rating: 65 dBA
  • Overall Width: 5 in
  • Thermal Protection: yes
  • Standards: CE, CUR
  • Free Air CFM @ 20 PSI: 0.8
  • Valve: Stainless Steel
  • Cylinder Material: Aluminum
  • Outlet Size: 1/4 in NPT
  • Power Cord: No
  • Number of Cylinders: 1
  • Temp. Range: 32 Degrees to 104 Degrees F
  • Motor Type: Capacitor Start
  • Overall Length: 7 23/32 in
  • Hz: 50/60
  • Design: Rocking Piston
  • Valve Material: Stainless Steel
  • Outlet Type: NPT
  • Minimum Operating Temperature: 5 Degrees C
  • Compressor Pump Style: Rocking
  • Air Tank Style: Tankless
  • Maximum Operating Temperature: 40 Degrees C
  • Frequency: 50 Hz, 60 Hz
  • Piston Type: Rocking
  • Maximum Continuous Pressure: 125 psi
  • Inlet Size (Combined): 1/4 in NPT
  • Outlet Size (Combined): 1/4 in NPT
  • Motor Design: Capacitor Start
  • Maximum Speed: 1,725 RPM
  • Current Rating: 0.8 A, 0.9 A, 1.4 A, 1.7 A
  • Inlet Type: NPT
  • Maximum Pressure Cont/Int: 125 psi / 125 psi
  • Maximum Vacuum: 27 in Hg
  • Phase (Broad): 1
  • Maximum Intermittent Pressure: 125 psi
  • Output Power: 0.125 hp
  • Sound Level: 65 dBA
  • Free Air Flow Rate: 1.1 cfm
  • Pump Type: Rocking Piston
  • Country of Origin (subject to change): United States

Description

Rocking Piston Vacuum Pump, 1/8 hp HP, Voltage 115/230V AC, 50/60 Hz, 1 Phase, Full Load Amps 1.4/.8, Inlet Size 1/4 in NPT, Outlet Size 1/4 in NPT, Max. PSI Cont./Int. 125, Free Air CFM @ 50 PSI 0.6, 27 in Hg Max. Vacuum, Overall Length 7 23/32 in, Overall Width 5 in, Overall Height 7 5/64 in, Cylinder Material Aluminum, Number of Cylinders 1, Motor Type Capacitor Start, 1725 RPM, 65 dBA Sound Rating, Rocking Piston Design, Valve Stainless Steel, Standards CE, CUR
