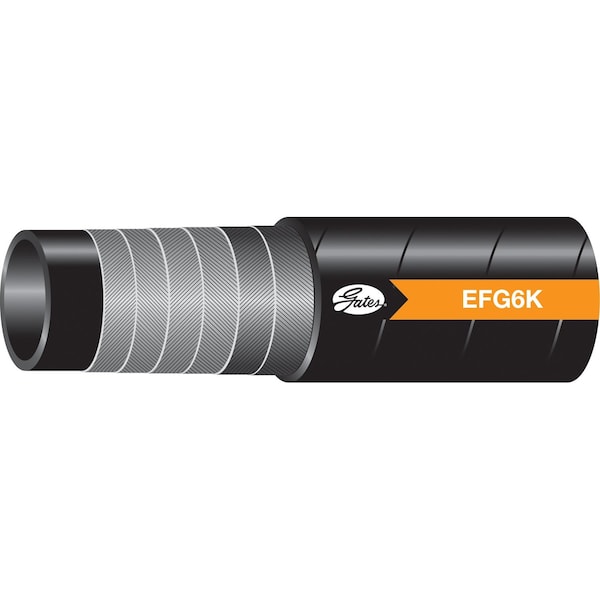

EFG6K Spiral Wire Hose - SAE 100R15
Mfr # 85467
Zoro # G514901876
product price:Â
$
1,025.99
/pr
Free Shipping & Returns
Key Features
Type
Hydraulic Hose
Cover Material
Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline
Min. Bend Radius (In.)
4 in
Temp. Range (F)
-40 Deg. F to +250 Deg. F
Dash Size
10
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 85467
- Zoro #
- G514901876
- UPC #
- 72053505832
- Country of Origin
- India
- Type
- Hydraulic Hose
- Cover Material
- Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline
- Temp. Range (F)
- -40 Deg. F to +250 Deg. F
Description
Recommended for extremely high pressure, high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
Temperature Range: -40 Deg F to +250 Deg F (-40 Deg C to +121 Deg C); Meets Flame Resistance Acceptance Designation MSHA 2G; Recommended Couplings: GlobalSpiral Couplings, GlobalSpiral MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20)
