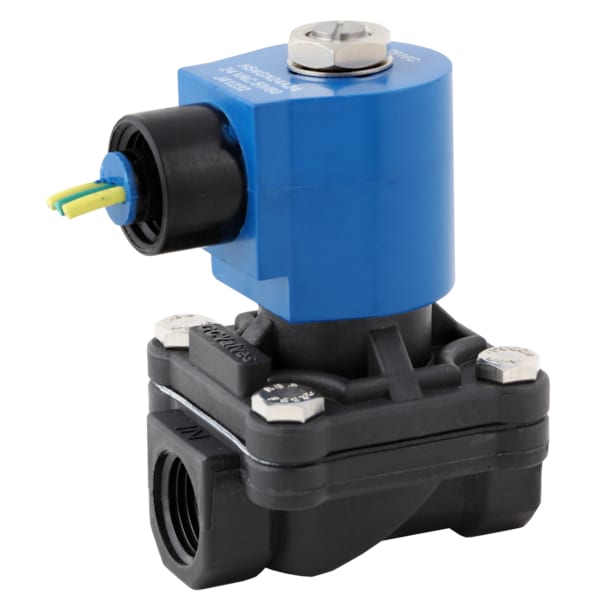

Solenoid Valve, 2-Way, 3/4 in Pipe Size, 24V DC, Diaphragm, Pilot Operated, Nylon, NBR
Mfr # S211GF16NPEG5
Zoro # G4520077
product price:
$
132.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water
Valve Ways
2-Way
Nominal Pipe Size
3/4 in
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S211GF16NPEG5
- Zoro #
- G4520077
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 3/4 in
- Orifice Diameter
- 3/4 in
Details
- For Media
- Air, Gas, Water
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 24V DC
- Valve Type
- Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- NBR
- Operating Pressure Differential - Minimum
- 4 psi
- Item
- Solenoid Valve
- Body Material
- Nylon
- Coil Insulation Class
- F
- Electrical Connections
- Conduit
- Fluid Temperature - Maximum
- 180°F
- Coefficient of Volume (Cv)
- 6.7
- Operating Pressure Differential Air/Inert Gas - Maximum
- 200 (AC), 150 (DC)
- Operating Pressure Differential Water - Maximum
- 150 (AC), 100 (DC)
Description
The GC VALVES S211GF16NPEG5 is a pilot-operated 2-way diaphragm solenoid valve constructed with a nylon body and NBR seals. It is designed for controlling the flow of air, gas, and water through a 3/4 inch orifice and nominal pipe size. This valve operates at 24V DC. Coil energization opens or closes the flow path. It supports applications requiring a maximum fluid temperature of 180°F and functions within pressure differentials ranging from a minimum of 4 psi up to 150 psi for water and 200 psi for air or inert gas; Voltage: 24V DC.
Key Features:
- Body Material: Nylon
- Seal Material: NBR (Buna-N)
- Valve Type: Diaphragm
- Valve Ways: 2-Way
- Operation Type: Pilot Operated
- Nominal Pipe Size: 3/4 in
- Orifice Diameter: 3/4 in
- Voltage: 24V DC
- Electrical Connections: Conduit
- Maximum Fluid Temperature: 180°F
- Media Compatibility: Air, Gas, Water
- Minimum Operating Pressure Differential: 4 psi
- Maximum Operating Pressure Differential: 150 psi (Water), 200 psi (Air/Inert Gas)
- Coil Insulation Class: F
- Inlet/Outlet Connection Type: NPT
- Flow Coefficient (Cv): 6.7
