Solenoid Valve, 2-Way, 3/8 in Pipe Size, 120V/60V, 110V/50V, Zero Differential, Diaphragm, Brass
Mfr # S201YF02V5CG4
Zoro # G4521477
product price: $248.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Valve Type
Zero Differential, Diaphragm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S201YF02V5CG4
- Zoro #
- G4521477
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 3/8 in
- Orifice Diameter
- 5/8 in
Details
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 120V/60V, 110V/50V
- Valve Type
- Zero Differential, Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- Viton, FKM
- Operating Pressure Differential - Minimum
- 0 psi
- Item
- Solenoid Valve
- Electrical Connections
- DIN
- Body Material
- Brass
- Coil Insulation Class
- F
- Fluid Temperature - Maximum
- 230°F
- Coefficient of Volume (Cv)
- 4.3
- Operating Pressure Differential Light Oil - Maximum
- 90 (AC), 70 (DC)
- Operating Pressure Differential Water - Maximum
- 140 (AC), 90 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 140 (AC), 90 (DC)
Description

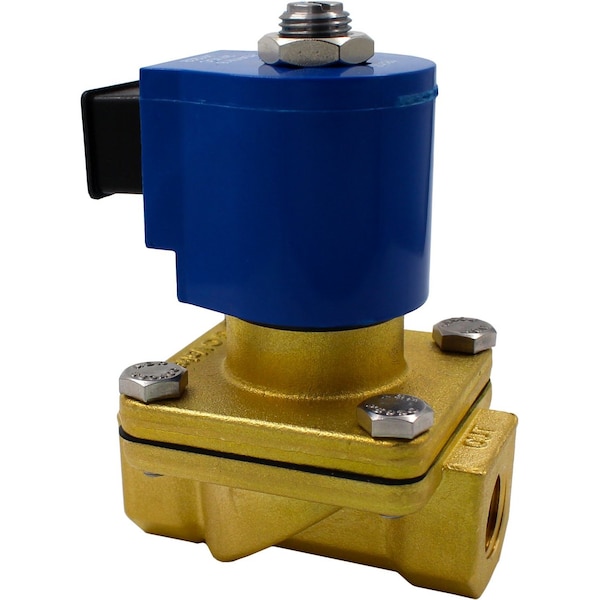

Pilot-operated solenoid valve with diaphragm mechanism actuated by an energized coil. It features a 3/8 inch nominal pipe size with NPT inlet and outlet connections. Compatible with air, gas, light oil, and water, this valve controls flow with a coefficient of volume (Cv) of 4.3. Its brass body construction incorporates Viton (FKM) seals and accommodates fluid temperatures up to 230°F. Rated for operation on 110V/50Hz or 120V/60Hz with a DIN-style electrical connection.
Key Features:
- Body Material: Brass
- Valve Type: Zero Differential, Diaphragm
- Operation Type: Pilot Operated
- Nominal Pipe Size: 3/8 in
- Inlet/Outlet Connection: NPT
- Seal Material: Viton, FKM
- Coefficient of Volume (Cv): 4.3
- Maximum Fluid Temperature: 230°F
- Electrical Connections: DIN
- Voltage: 110V/50Hz, 120V/60Hz
- Compatible Media: Air, Gas, Water, Light Oil
- Operating Pressure Differential Maximum (psi): 140 (Air/Inert Gas and Water, AC), 90 (Air/Inert Gas and Water, DC), 90 (Light Oil, AC), 70 (Light Oil, DC)
- Operating Pressure Differential Minimum: 0 psi
- Orifice Diameter: 5/8 in
- Valve Ways: 2-Way
- Coil Insulation Class: F
