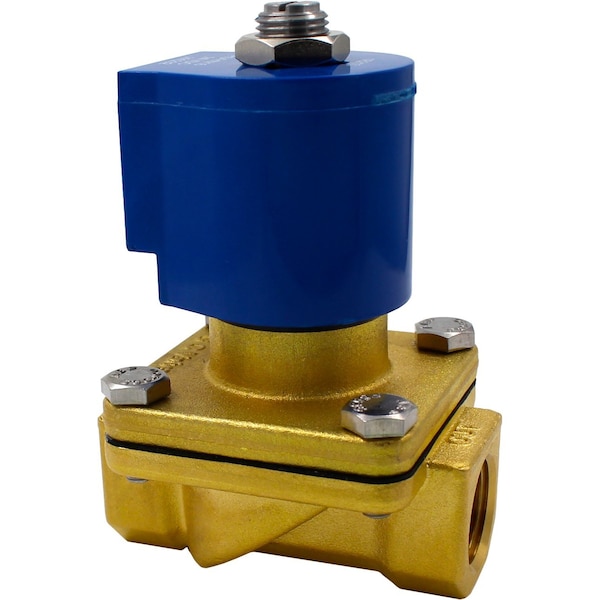

Solenoid Valve, 2-Way, 1/2 in Pipe Size, 120V/60V, 110V/50V, Zero Differential, Diaphragm, Brass
Mfr # S201YF02V5DG4
Zoro # G4519858
product price:
$
248.99
/ea
Free Shipping & Returns
Key Features
For Media
Air, Gas, Water, Light Oil
Valve Ways
2-Way
Inlet Connection Type
NPT
Outlet Connection Type
NPT
Valve Type
Zero Differential, Diaphragm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S201YF02V5DG4
- Zoro #
- G4519858
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/2 in
- Orifice Diameter
- 5/8 in
Details
- For Media
- Air, Gas, Water, Light Oil
- Valve Ways
- 2-Way
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Voltage
- 120V/60V, 110V/50V
- Valve Type
- Zero Differential, Diaphragm
- Operation Type
- Pilot Operated
- Seal Material
- Viton, FKM
- Operating Pressure Differential - Minimum
- 0 psi
- Item
- Solenoid Valve
- Coil Insulation Class
- F
- Body Material
- Brass
- Electrical Connections
- DIN
- Fluid Temperature - Maximum
- 230°F
- Coefficient of Volume (Cv)
- 4.3
- Operating Pressure Differential Water - Maximum
- 140 (AC), 90 (DC)
- Operating Pressure Differential Air/Inert Gas - Maximum
- 140 (AC), 90 (DC)
- Operating Pressure Differential Light Oil - Maximum
- 90 (AC), 70 (DC)
Description
The GC VALVES S201YF02V5DG4 is a pilot-operated, 2-way solenoid valve designed to control the flow of air, gas, water, and light oil. It features a brass valve body with a 5/8 inch orifice diameter and uses a diaphragm valve type for zero differential operation. This valve has NPT inlet and outlet connections and is rated for operation at 110 V (50 Hz) or 120 V (60 Hz). Coil insulation class: F. Maximum media temperature: 230°F, providing flow regulation with a coefficient of volume (Cv) of 4.3.
Key Features:
- Valve Type: Zero Differential, Diaphragm
- Operation: Pilot Operated, 2-Way
- Body Material: Brass
- Orifice Diameter: 5/8 in
- Connections: Inlet and Outlet NPT
- Electrical Connections: DIN
- Voltage: 110 V (50 Hz) or 120 V (60 Hz)
- Coil insulation class: F
- Maximum media temperature: 230°F
- Suitable Media: Air, Gas, Water, Light Oil
- Cv (Flow Coefficient): 4.3
- Maximum Operating Pressure Differentials: Air/Inert Gas 140 psi, Light Oil 90 psi, Water 140 psi (AC values shown)
