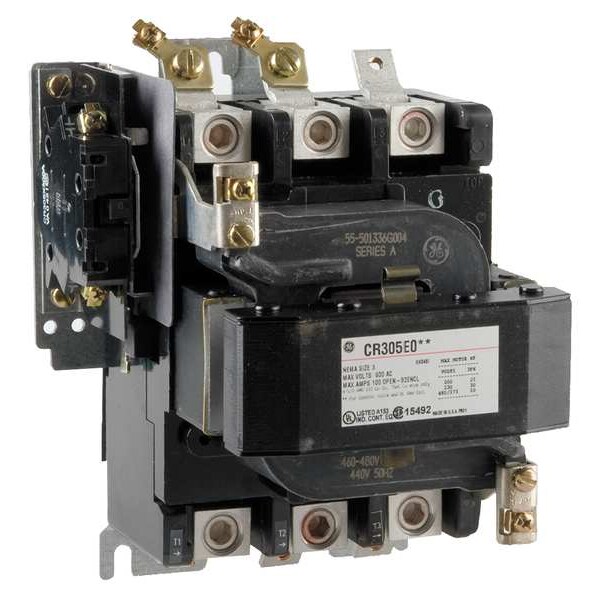

480VAC Non-Reversing Magnetic Contactor 3P 90A NEMA 3

  • Mfr # CR305E004
  • Zoro # G3518015
product price:
$
1,006.99
/ea
Free Shipping & Returns

Key Features

Action
Non-Reversing
Full Load Amps
90 A
Number of Poles
3
NEMA Contactor Size
3
Reversing
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CR305E004
Zoro #
G3518015
UPC #
094714461981
Country of Origin
United States
Item
NEMA Magnetic Contactor
Action
Non-Reversing
Full Load Amps
90 A
Number of Poles
3
Coil Volts
480V AC
Reversing
No
HP @ 1 Phase - 120V
7 1/2 hp
HP @ 1 Phase - 240V
15 hp
HP @ 3 Phase - 208V
25 hp
HP @ 3 Phase - 240V
30 hp
HP @ 3 Phase - 575V
50 hp
HP @ 3 Phase - 480V
50 hp
Enclosure NEMA Rating
No Enclosure
Standards
cULus, UL Listed, WEEE B2C/B2B
Auxiliary Contact Form
1NO
Hz
50/60 Hz
Series
CR305
Includes Auxiliary Contacts
Yes
Number of Auxillary Contacts
1
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
25 hp
Frequency
50/60 Hz
Embedded Surge Suppressor
No
Reversing Capability
Non-Reversing
Maximum Voltage Rating
600V AC
Horsepower @ Three Phase - 600V AC
50 hp
Horsepower @ Three Phase - 240V AC
30 hp
NEMA Enclosure Rating
No Enclosure
Coil Voltage
480V AC
Contactor Style
NEMA
Horsepower @ Single Phase - 240V AC
15 hp
Horsepower @ Three Phase - 480V AC
50 hp
Resistance Properties
Temperature Resistant
Phase
Three
Full Load Current - Inductive
90 A

Dimensions

NEMA Contactor Size
3
Height
8.81 in
Width
6.5 in
Depth
6.7 in
NEMA Size
3
Overall Depth
8.5 in
Mounting Hole Distance - Width
4.5 in
Overall Width
6.62 in
Mounting Hole Distance - Height
7.75 in
Mounting Hole Diameter
0.25 in
Overall Height
6.5 in

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 3, Coil Voltage 480V AC, Number of Poles 3, Full Load Current - Inductive 90 A, Reversing Capability Non-Reversing, Overall Height 6.5 in, Overall Width 6.62 in, Series CR305, Number of Auxillary Contacts 1, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 30 hp, Horsepower @ Three Phase - 480V AC 50 hp, Phase Three, Horsepower @ Three Phase - 600V AC 50 hp
