Shop SIEMENS

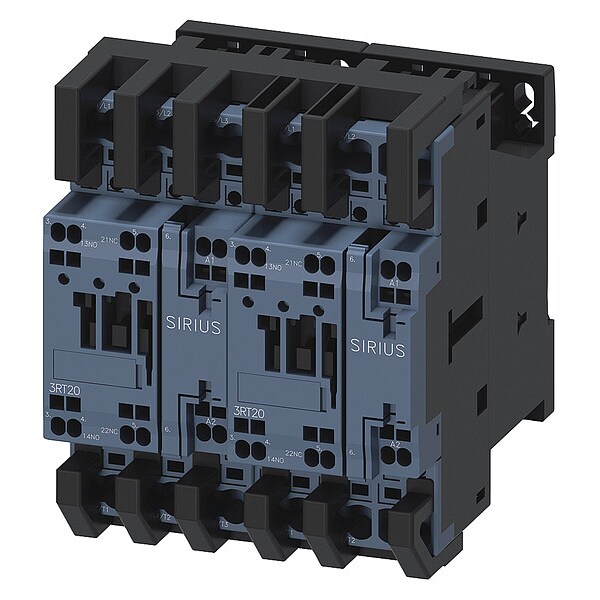

IECPowerContactor, Reversing, 110/120VAC

  • Mfr # 3RA23268XB302AK6

  • Zoro # G8359907

product price:  $470.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
21 A
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
110/120 V AC
Reversing
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3RA23268XB302AK6
Zoro #
G8359907
UPC #
662643905441
Country of Origin
Germany

Dimensions

Height
114 mm
Width
90 mm
Depth
97 mm
Overall Width
4.34 in
Overall Height
6.78 in
Overall Depth
4.93 in
Frame Size
S0

Details

Full Load Amps-Inductive
21 A
Item
IEC Power Contactor
Full Load Amps-Resistive
40 A
Number of Poles
3
Coil Volts
110/120 V AC
Reversing
Yes
HP @ 1 Phase - 120V
2 hp
HP @ 1 Phase - 240V
3 hp
HP @ 3 Phase - 575V
20 hp
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 3 Phase - 480V
15 hp
Aux. Contact Configuration
2NO
Frame / Series / Class / Code
S0
Auxiliary Contact Form
1NC
Standards
REACH Art 33, WEEE (2012/19/EU)
Series
SIRIUS 3RA23
Hz
50/60
Reversing Capability
Reversing
Number of Normally Closed Main Contacts
0
Coil Voltage
110/120V AC
Maximum Voltage Rating
690V AC
Mechanical Operating Durability
10,000,000
Terminal Connection Type
Spring Loaded Terminals
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Operating Temperature
-13 Degrees F
Full Load Current - Inductive
25 A
Horsepower @ Single Phase - 240V AC
3 hp
Mounting Postion
Vertical
Embedded Surge Suppressor
No
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Horsepower @ Three Phase - 600V AC
20 hp
Horsepower @ Three Phase - 480V AC
15 hp
Maximum Operating Temperature
140 Degrees F
Phase
Three
Contactor Style
IEC
Mounting Style
DIN Rail, Surface
Frequency
50/60 Hz
IP Rating
IP20
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Includes Auxiliary Contacts
Yes
Number of Auxillary Contacts
3
Number of Normally Open Main Contacts
3
Full Load Current - Resistive
40 A

Description

IEC Power Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Reversing, Overall Height 6.78 in, Overall Width 4.34 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RA23, Number of Auxillary Contacts 3, Contactor Style IEC
