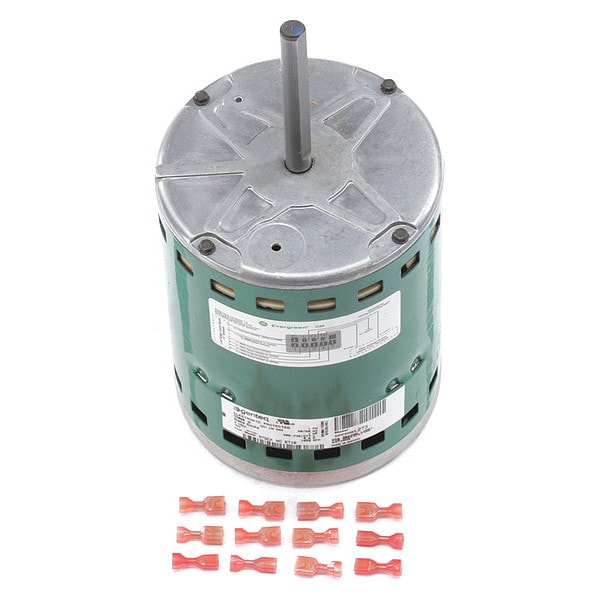

Direct Drive Blower Motor, 1 HP, ECM, Band

  • Mfr # 6710
  • Zoro # G4313885
product price:
$
440.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,075
Voltage
208V AC to 230V AC, 277V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6710
Zoro #
G4313885
UPC #
815585023883
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 15/16 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Overall Length
11 3/16 in
Length Less Shaft
7 1/4 in
Bolt Circle Dia.
5 3/8 in
Lead Length
42 in
Frame Size
48
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 3/8 in
Fits Chest Size
Auto Rotation, Dual Voltage by Plug Selection, Multi-Speed (5 Taps @ 24vac), PWM Auto Recognized

Details

HP
1
Nameplate RPM
1,075
Voltage
208V AC to 230V AC, 277V AC
Frame
48
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Ins. Class
B
Motor Mounting Position
Horizontal
Duty
Continuous
Motor Enclosure Design
Open Air-Over
Full Load Amps
7.6/6.6 A
Item
Direct Drive Blower Motor
Motor Service Factor
1
Motor Bearings
Ball
Application
Fan/Blower
Motor Sub Application
Direct Drive Fan/Blower
Motor Application
HVAC/R
No. of Speeds
5
Phase
Single
Motor Mounting Type
Face
Hz
60 Hz
Motor Design
ECM
Voltage Compatibility
208V AC to 230V AC, 277V AC, 230V AC, 277V AC, 265V AC, 277V AC, 230V AC, 277V AC
Motor Shaft Design
Flat
Capacitor Required
No
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Motor Frame Material
Steel
Number of Shafts
1
Weight
21 lb
Duty Cycle
Continuous
Usable @ 200V
No
Usable @ 208V
Yes
Stud Quantity
4
Mounting Holes
4
Bearing Type
Ball
Mounting Position
Horizontal
Full Load Current @ 60 Hz
7.6/6.6 A
Sub Application
General Purpose
Includes User Interface
User Interface Not Included
Motor Enclosure Type
Open Air Over
Product Type
Fan and Blower Motor
Control Connector Configuration
9-Pin
Number of Speeds
5
Frequency
60 Hz
ECM Motor Type
Constant Torque
Rated Horsepower
1 hp
Compatible with External Controller
External Control Compatible
Includes
Optional Crimp Connect Terminals, Optional Low Voltage Wiring Harness, Voltage Plugs
Ambient Temperature - Maximum
40 Degrees C
Series
Evergreen(R) CM
Shaft Design
Flat
Manufacturers Warranty
1 yr
Wattage
750 W
Frame Material
Steel
Features
Auto Rotation, Dual Voltage by Plug Selection, Multi-Speed (5 Taps @ 24vac), PWM Auto Recognized
Nameplate Service Factor @ 60 Hz
1
External Control Type
Building Management System Low Voltage Controller, PWM Controller
Insulation Class
B

Description

Direct Drive Blower Motor, 48
