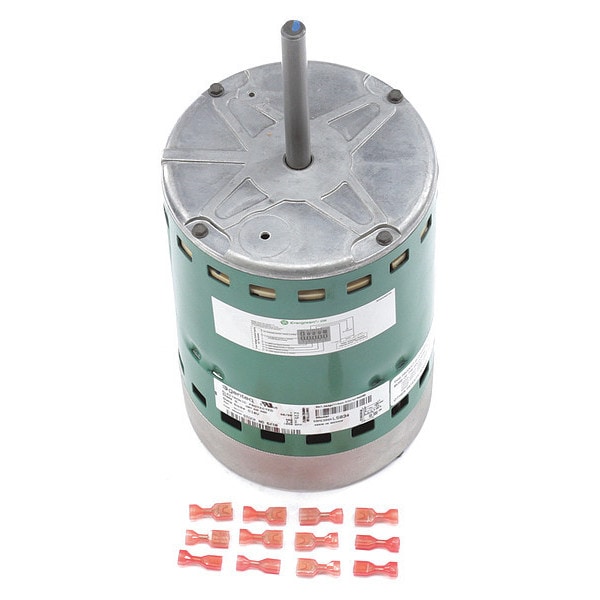

Direct Drive Blower Motor, 1 HP, ECM, 460V

  • Mfr # 6410
  • Zoro # G4313858
product price:
$
643.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,075
Voltage
460V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6410
Zoro #
G4313858
UPC #
815585023845
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
3 15/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 1/8 in
Overall Length
12 in
Bolt Circle Dia.
5 3/8 in
Body Dia.
5 5/8 in
Lead Length
42 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48
Bolt Circle Diameter
5 3/8 in
Fits Chest Size
Auto Rotation, Dual Voltage by Plug Selection, Multi-Speed (5 Taps @ 24vac), PWM Auto Recognized

Details

HP
1
Nameplate RPM
1,075
Voltage
460V AC
Frame
48
Motor Shaft Rotation
CWSE
RPM Range
1,001-1,100
Item
Direct Drive Blower Motor
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Duty
Continuous
Motor Mounting Position
Vertical Shaft Down
Hz
60 Hz
Capacitor Required
No
No. of Speeds
5
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Motor Enclosure Design
Open Air-Over
Motor Design
ECM
Ins. Class
B
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Full Load Amps
4 A
Motor Mounting Type
Band
Phase
Single
Application
Fan/Blower
Motor Application
HVAC/R
Motor Thermal Protection
None
Usable @ 208V
No
Motor Frame Material
Steel
Includes
Optional Crimp Connect Terminals, Optional Low Voltage Wiring Harness, Voltage Plugs
Mounting Holes
4
Number of Shafts
1
Duty Cycle
Continuous
Stud Quantity
4
Weight
19 lb
Usable @ 200V
No
Motor Enclosure Type
Open Air Over
Includes User Interface
User Interface Not Included
Shaft Design
Flat
Frequency
60 Hz
ECM Motor Type
Constant Torque
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Bearing Type
Ball
Frame Material
Steel
Full Load Current @ 60 Hz
4.0 A
Mounting Position
Vertical Shaft Down
External Control Type
Building Management System Low Voltage Controller, PWM Controller
Features
Auto Rotation, Dual Voltage by Plug Selection, Multi-Speed (5 Taps @ 24vac), PWM Auto Recognized
Number of Speeds
5
Manufacturers Warranty
1 yr
Compatible with External Controller
External Control Compatible
Series
Evergreen(R) CM
Control Connector Configuration
9-Pin
Wattage
750 W
Rated Horsepower
1 hp
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Sub Application
General Purpose

Description

Direct Drive Blower Motor, 48
