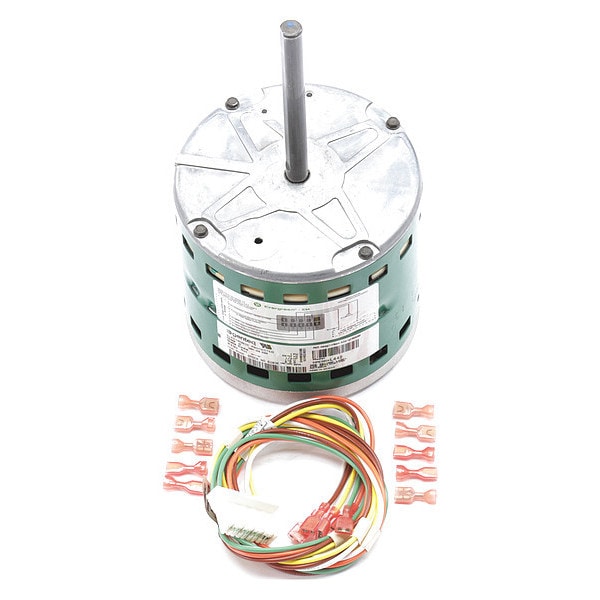

Genteq Electric Motor, ECM, Open Air-Over, 1/3 HP 6103E

Electric Motor, ECM, Open Air-Over, 1/3 HP (Discontinued)

  • Mfr # 6103E
  • Zoro # G5535941
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6103E
Zoro #
G5535941
UPC #
815585020462
Country of Origin
Mexico

Dimensions

Length Less Shaft
5 1/4 in
Shaft Length
4 15/16 in
Shaft Dia.
1/2 in
Body Dia.
5 5/8 in
Overall Length
10 3/16 in
Lead Length
42 in

Details

Motor Sub Application
Direct Drive Fan/Blower
HP
1/3
RPM Range
1,001-1,100
Voltage
115V AC
Phase
Single
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,075
No. of Speeds
5
Motor Mounting Position
Horizontal
Capacitor Required
No
Duty
Continuous
Full Load Amps
4.8 A
Plug Type
Wiring Harness
Application
Direct Drive Blower
Motor Service Factor
1
Motor Frame Material
Steel
Motor Shaft Design
Flat
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Thermal Protection
None
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item
Direct Drive Blower Motor
Hz
60 Hz
Motor Design
ECM
Frame Material
Rolled steel
Motor Mounting Type
Face
Frame
48
Motor Application
HVAC/R
Ambient Temperature
-20 Degrees to 55 Degrees C
Motor Bearings
Ball
Includes
Wiring Harness
Usable @ 200V
No
Duty Cycle
Continuous
Weight
11 lb
Number of Shafts
1
Stud Quantity
4
Usable @ 208V
No
Mounting
Band
Frequency
60/50
Number of Speeds
5

Description

Fan and Blower Motor, Single Phase, Motor Design ECM, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 5, Voltage 115V AC, 4.8 A Full Load Amps, 48 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type C-Face, Motor Frame Material Steel
