  11. Electric Motor, ECM, Open Air-Over, 1/3 HP
Shop All ECM Motors
Genteq

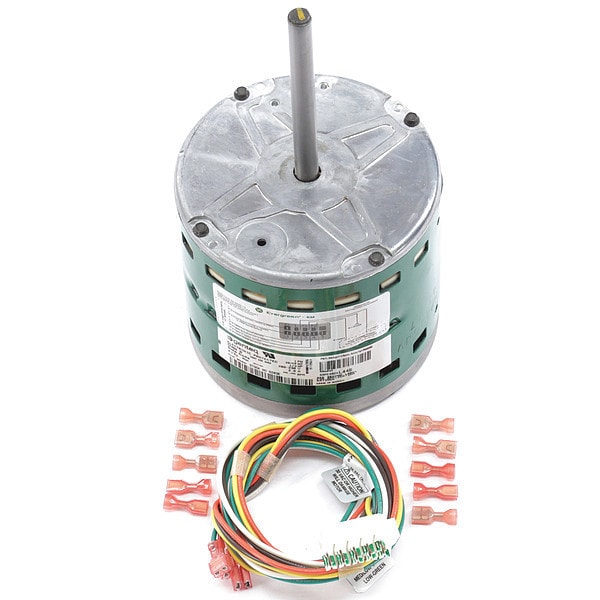

Electric Motor, ECM, Open Air-Over, 1/3 HP

product price: $265.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Sub Application Direct Drive Fan/Blower
  • HP 1/3
  • RPM Range 1,001-1,100
  • Voltage 208-230V AC
  • Phase Single
See all product information

Product Information

  • Brand Genteq
  • MFR # 6203E
  • Zoro # G5757997
  • UPC #
    815585020479
  • Country of Origin Mexico
  • Category ECM Motors

Dimensions

Length Less Shaft 5 1/4 in
Shaft Dia. 1/2 in
Overall Length 10 3/16 in
Body Dia. 5 5/8 in
Shaft Length 4 15/16 in
Lead Length 42 in

Details

Motor Sub Application Direct Drive Fan/Blower
HP 1/3
RPM Range 1,001-1,100
Voltage 208-230V AC
Phase Single
Motor Shaft Rotation CW/CCW
Motor Enclosure Design Open Air-Over
Nameplate RPM 1,075
No. of Speeds 5
Includes Wiring Harness
Motor Bearings Ball
Motor Service Factor 1
Application Direct Drive Blower
Duty Continuous
Motor Design ECM
Max. Ambient Temp. 40 Degrees C
Hz 60 Hz
Plug Type Wiring Harness
Ambient Temperature -20 Degrees to 55 Degrees C
Capacitor Required No
Frame Material Rolled steel
Motor Frame Material Steel
Motor Application HVAC/R
Standards CSA Certified, UL Recognized
Motor Mounting Position Horizontal
Full Load Amps 2.08 A
Motor Mounting Type Face
Motor Shaft Design Flat
Voltage Compatibility 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Thermal Protection None
Frame 48
Item ECM Direct Drive Blower Motor
Ins. Class B
Weight 9 lb
Usable @ 200V No
Usable @ 208V Yes
Number of Shafts 1
Duty Cycle Continuous
Mounting Band
Frequency 60/50
Number of Speeds 5

Description

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 5, Voltage 208-230V AC, Full Load Amps 2.08 A, 48 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection None, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 42 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Mounting Position Horizontal
