  11. Diaphragm Valve, 2-Way, 2 In, Socket/Thrd
Shop All Diaphragm Valves
Georg Fischer

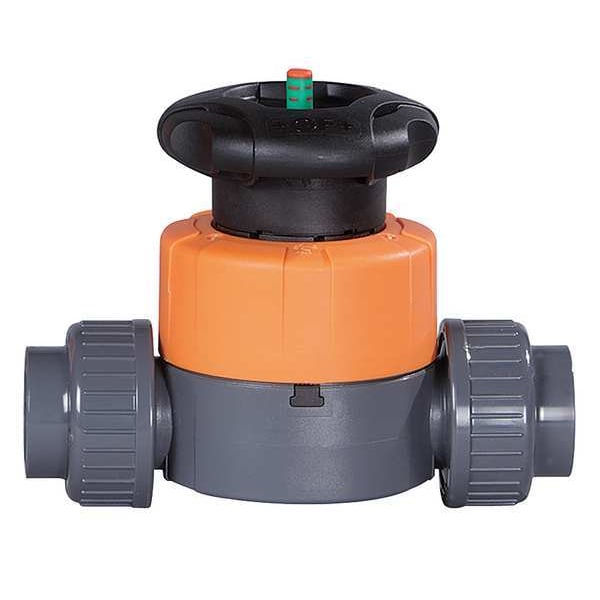

Diaphragm Valve, 2-Way, 2 In, Socket/Thrd

product price: $474.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Design 2-Way
  • Pipe Size 2 in
  • Connection Socket x Socket
  • Coefficient of Volume 457
  • Body Material PVC
See all product information

Product Information

Dimensions

Pipe Size 2 in
Length 10 35/64 in
Overall Length 10.55 in
Nominal Valve Size 2 in

Details

Item Diaphragm Valve
Valve Design 2-Way
Connection Socket x Socket
Coefficient of Volume 457
Body Material PVC
Fluid Temp. Range 32 Degrees to 140 Degrees F
Diaphragm Material EPDM
Seal Material EPDM
Max. Pressure 150 psi
Operating Temperature - Minimum 32 Degrees F
Special Features Locking Handle, Position Indicator
For Media Chemicals
Diaphragm Valve Type 2-Way
Connection Type - Side 2 Socket
Operating Temperature - Maximum 140 Degrees F
Handle Type Wheel
Coefficient of Volume (Cv) 1,728
Connection Type - Side 1 Socket
Standards ASTM D1784, FDA CFR 21 177.2600, NSF 61
Maximum Pressure - Operating 150 psi

Description

Diaphragm Valve, Coefficient of Volume (Cv) 1,728, Nominal Valve Size 2 in, Connection Type - Side 1 Socket, Connection Type - Side 2 Socket, For Media Chemicals, Standards ASTM D1784, FDA CFR 21 177.2600, NSF 61, Diaphragm Material EPDM, Seal Material EPDM, Maximum Pressure - Operating 150 psi, Operating Temperature - Maximum 140 Degrees F, Diaphragm Valve Type 2-Way, Handle Type Wheel, Body Material PVC, Special Features Locking Handle, Position Indicator
