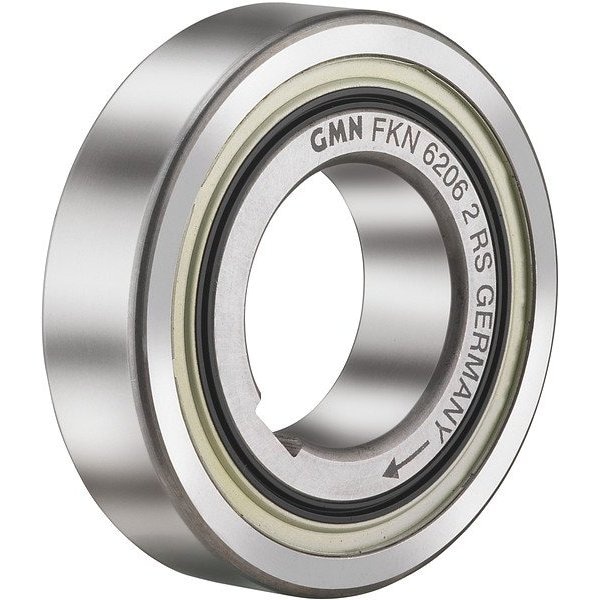

Ball Bearing Supported Clutches
Mfr # FKN 6206-2RS
Zoro # G016497822
product price:Â
$
340.99
/ea
Free Shipping & Returns
Key Features
Maximum Ambient Temperature
110 Degrees C
Standards
DIN 625, DIN 6885
Maximum Speed
2,400 RPM
Housing Material
Steel
Shaft Diameter
30 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FKN 6206-2RS
- Zoro #
- G016497822
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shaft Diameter
- 30 mm
- Keyway Width
- 8 mm
- Outside Diameter
- 62 mm
- Overall Width
- 16 mm
- Keyway Depth
- 2 mm
Details
- Item
- Ball Bearing Supported Clutches
- Maximum Ambient Temperature
- 110 Degrees C
- Standards
- DIN 625, DIN 6885
- Maximum Speed
- 2,400 RPM
- Housing Material
- Steel
- Frequency
- 10 Hz
- Static Torque
- 109.2 ft-lb
- Resistance Properties
- Corrosion Resistant
- Application
- Backstops/Overrunning Clutches, Indexing Clutches
- Clutch/Brake Type
- Sprag
Description
Ball Bearing Supported Clutches, Clutch/Brake Type Sprag, Static Torque 109.2 ft-lb, Shaft Diameter 30 mm, Maximum Speed 2,400 RPM, Outside Diameter 62 mm, Overall Width 16 mm, Resistance Properties Corrosion Resistant, Standards DIN 625, DIN 6885, Application Backstops/Overrunning Clutches, Indexing Clutches
