Shop MARATHON

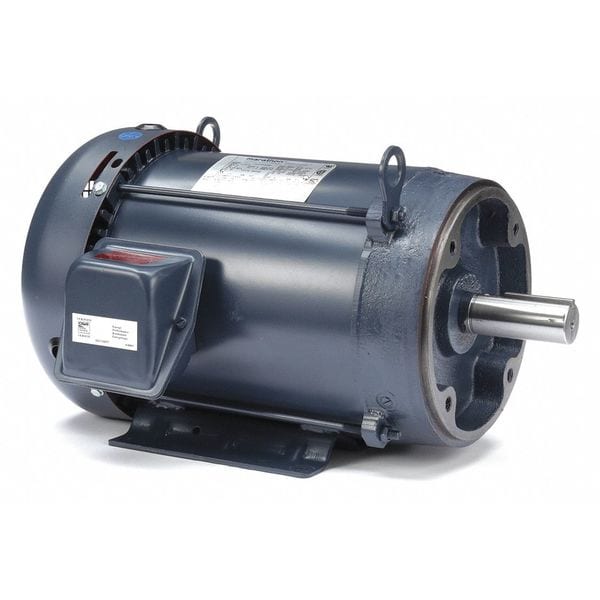

Three-Phase General Purpose Motor, 7 1/2 HP, 213TC Frame, 230/460V AC Voltage

  • Mfr # 213TTFBD6003

  • Zoro # G9816143

product price:  $1,036.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

HP
7 1/2
Nameplate RPM
3525 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TTFBD6003
Zoro #
G9816143
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
15 3/4 in
Overall Length
19 1/8 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
213TC
Wire Rope Length
19 1/8 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3525 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
18.4/9.2 A
Frame
213TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
90.2 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
HP @ 50Hz
7 1/2 hp
Usable @ 208V
Not Usable at 208V
Weight
136 lb
Duty Cycle
Continuous
RPM @ 50Hz
3525 rpm
Service Factor @ 50Hz
1.15
Voltage @ 50Hz
230/460
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
18.4/9.2 A
Capacitor Required
No
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
Nameplate RPM @ 50 Hz
1,445/1,450/1,455 RPM
Bearing Type
Ball
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
18.4/9.2 A
Application
General Purpose
Nameplate Horsepower @ 50 Hz
7 1/2 hp
Product Type
General Purpose Motor
Nameplate Service Factor @ 50 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Frame Material
Steel
Number of Speeds
1
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
NEMA Design Class
B
Shaft Design
Keyed
Full Load Current @ 50 Hz
18.4/9.2 A

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 3525 rpm, Frame 213TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 18.4/9.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600
