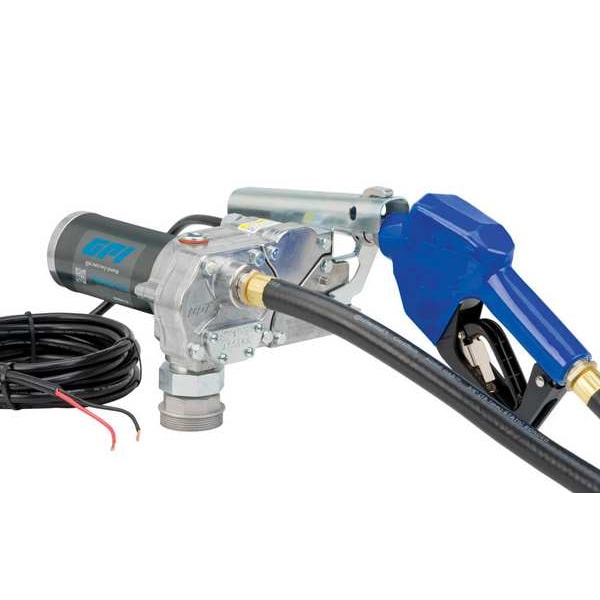

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # M-150S-AU

  • Zoro # G5925421

product price:  $590.99
/ea
Free Shipping & Returns

Key Features

Type
Gear
Outlet Size
3-2/5 in
For Use With
Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Lockable Nozzle Holder, Spin Collar, Tank Adapter
Rated Voltage
12 V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-150S-AU
Zoro #
G5925421
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size
3-2/5 in
Hose Length
12 ft
Bung Connection Dia.
2 in
Hose Outside Dia.
3/4 in
For Container Size
10 gal, 500 gal
Height Above Container
11 in
Suction Tube Length
40 in
Cord Length
18 ft
Suction Tube Outlet O.D. Size
1 in
Power Cord Length (Ft.)
18 ft
Hose Outside Diameter
3/4 in
Adapter Connection Diameter
2 in

Details

Item
Electric Drum Pump
Type
Gear
For Use With
Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Lockable Nozzle Holder, Spin Collar, Tank Adapter
Rated Voltage
12 V DC
Adapter Connection Type
MNPT
Agency Compliance
CE, Class I Div 2, cULus, EEC
Max. Flow Rate
15 gpm
Includes Spout
No
Duty Cycle
30 Minutes On/30 Minutes Off
Max. Head - Pumps
4 4/5 ft
Power Source
Corded Electric
Seal Material
Buna-N
Includes Suction Tube
Yes
Mount Type
Bung
Housing Material - Pumps
Aluminum
Runs Dry
No
Spout Material
Aluminum
Suction Tube Material
Polypropylene
Metered
No
Max. Viscosity
50 SUS
Thermal Protection
Yes
Hose Tube Material
Nitrile
Food Grade
No
Hose Cover Material
Nitrile
Explosion Proof
Yes
Includes Nozzle
Yes
Variable Speed
No
Self-Priming
Yes
Includes Discharge Hose
Yes
Motor RPM
1,900 RPM
Includes Bung Adapter
Yes
Nozzle Fluid Compatibility
Diesel, Gasoline
Suction Tube OD
1 in
Motor Enclosure
Explosion Proof
Max. Fluid Temp.
125 Degrees F
Discharge Connection Type
FNPT
Pump Connection Type
FNPT
Adapter Material
Aluminum
Nozzle Operation
Automatic
Nozzle Material
Aluminum
Compatible Chemicals
Diesel, Gasoline, Kerosene
Housing Finish
Powder Coated
Diesel Exhaust Fluid Compatible
No
Min. Fluid Temp.
-20 Degrees F
Number of Phases
1
Amps
25.0 A
Frequency
60 Hz
Max. Temp._x
125 Degrees F
HP
1/5 hp
Connection Type
FNPT
Outlet Pressure Max. (PSI)
15 psi
Motor Horsepower
1/5 hp
Maximum Head
4 13/16 ft
Static Protection
Grounding Line Included
Chemical Compatibility
Diesel, Gasoline, Kerosene
Maximum Outlet Pressure
15 psi
Pump Connection ID
1 in
Hazardous Location Class
Class I Division 2 Group D
Full Load Current
25 A
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
15 gpm
Motor Speed
1,900 RPM
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Pump Technology
Gear
Standards
CE, cULus, EEC
Meter Type Included
No Meter Included
Minimum Fluid Temperature
-20 Degrees F
Adapter Connection Standard
MNPT
Pump Connection OD
1 in
For Container Type
Tank
Maximum Fluid Temperature
125 Degrees F
Maximum Viscosity
50 SUS
Housing Material
Aluminum
Maximum Head Pressure
12 psi
Phase
Single
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
