Shop GPI

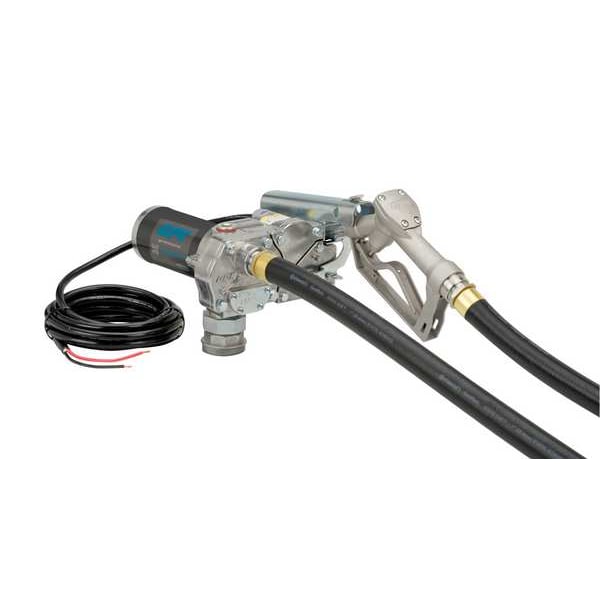

Electric Drum Pump, Aluminum, 12 V DC

  • Mfr # M-180S-ML

  • Zoro # G6011844

product price:  $665.99
/ea
Free Shipping & Returns

Key Features

Type
Gear
For Use With
Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene
Outlet Size
1 in
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Installation Kit, Tank Adapter
Max. Fluid Temp.
125 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-180S-ML
Zoro #
G6011844
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size
1 in
Suction Tube Length
40 in
Height Above Container
11 in
Hose Outside Dia.
1 in
Cord Length
18 ft
Hose Length
12 ft
For Container Size
10 gal, 500 gal
Bung Connection Dia.
2 in
Suction Tube Outlet O.D. Size
1 in
Power Cord Length (Ft.)
18 ft
Hose Outside Diameter
1 in
Adapter Connection Diameter
2 in

Details

Item
Electric Drum Pump
Type
Gear
For Use With
Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Installation Kit, Tank Adapter
Max. Fluid Temp.
125 Degrees F
Self-Priming
Yes
Housing Material - Pumps
Aluminum
Discharge Connection Type
FNPT
Variable Speed
No
Includes Suction Tube
Yes
Metered
No
Suction Tube OD
1 in
Includes Discharge Hose
Yes
Diesel Exhaust Fluid Compatible
No
Pump Connection Type
FNPT
Includes Spout
No
Mount Type
Bung
Seal Material
Buna-N
Number of Phases
1
Adapter Connection Type
MNPT
Power Source
Corded Electric
Housing Finish
Powder Coated
Motor RPM
2,000 RPM
Includes Nozzle
Yes
Nozzle Material
Aluminum
Hose Tube Material
Nitrile
Runs Dry
No
Hose Cover Material
Nitrile
Includes Bung Adapter
Yes
Duty Cycle
30 Minutes On/30 Minutes Off
Explosion Proof
Yes
Suction Tube Material
Polypropylene
Thermal Protection
Yes
Max. Head - Pumps
5 1/2 ft
Motor Enclosure
Explosion Proof
Compatible Chemicals
Diesel, Gasoline, Kerosene
Min. Fluid Temp.
-20 Degrees F
Rated Voltage
12 V DC
Nozzle Operation
Manual
Spout Material
Aluminum
Food Grade
No
Max. Flow Rate
18 gpm
Nozzle Fluid Compatibility
Diesel, Gasoline
Agency Compliance
CE, Class I Div 2, cULus, EEC
Max. Viscosity
50 SUS
Adapter Material
Aluminum
Connection Type
FNPT
HP
1/4 hp
Frequency
60 Hz
Outlet Pressure Max. (PSI)
15 psi
Max. Temp._x
125 Degrees F
Amps
30.0 A
Pump Connection OD
1 in
Includes Follower Plate
No Follower Plate Included
Motor Horsepower
1/4 hp
Minimum Fluid Temperature
-20 Degrees F
Full Load Current
30 A
Maximum Flow Rate
18 gpm
Motor Speed
2,000 RPM
Pump Connection ID
1 in
Housing Material
Aluminum
Maximum Outlet Pressure
15 psi
Maximum Fluid Temperature
125 Degrees F
Static Protection
Grounding Line Included
Adapter Connection Standard
MNPT
Meter Type Included
No Meter Included
Maximum Viscosity
50 SUS
Maximum Head
5 1/2 ft
Standards
CE, cULus, EEC
Pump Technology
Gear
Hazardous Location Class
Class I Division 2 Group D
For Container Type
Tank
Chemical Compatibility
Diesel, Gasoline, Kerosene
Phase
Single
Maximum Head Pressure
12 psi
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Diesel Fuel (Biodiesel Blends B20), Gasoline (Alcohol Blends E15), Kerosene, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source - TS Only Corded Electric, Variable Speed No, Includes Discharge Hose Yes
