Shop GRACO

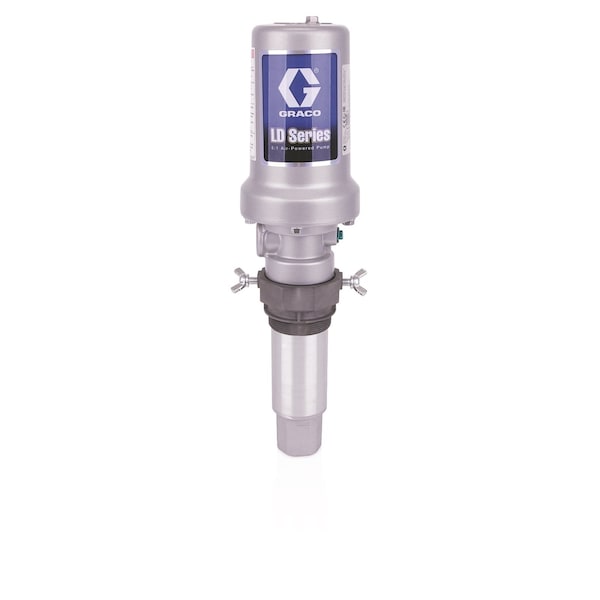

Air Drum Pump, 6.7 gpm, 750 psi, 5:1

  • Mfr # 24G588

  • Zoro # G3950908

product price:  $1,294.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Powered
Container Size
Universal
Working Flow Max. (GPM)
2 gpm
Output
N/A: Not Listed
Max. Air Inlet PSI
150 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
24G588
Zoro #
G3950908
UPC #
-
Country of Origin
China

Dimensions

Container Size
Universal
Bung Connection Dia.
2 in
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Type
Air-Powered
Working Flow Max. (GPM)
2 gpm
Output
N/A: Not Listed
Max. Air Inlet PSI
150 psi
Pump for Multiple Outlets
Yes
Min. Air Inlet Pressure
20 psi
Includes
Bung Adapter
Includes Suction Tube
No
Metered
No
Includes Spout
No
Includes Nozzle
No
Features
Built in Thermal Relief, Easy to Maintain, Built in Inlet Strainer, Innovative Air Valve, Modular Air Valve, Pilot Valve, Self-Cleaning Design
Includes Bung Adapter
Yes
Max. Flow Rate
6.7 gpm
Discharge Connection Type
FNPT
Wetted Materials
Aluminum, Nickel-Plated Aluminum, Buna-N, Polyurethane, Zinc-Plated Carbon Steel
Adapter Connection Type
NPT
Air Consumption
18 scfm
Includes Discharge Hose
No
Compatible Chemicals
Oil
Power Source
Air
Agency Compliance
CE
Min. Air Pressure
20 psi
Pump Ratio
5:01
Outlet Pressure Max. (PSI)
750 psi
Air Inlet (In.)
1/4 NPT
Wetted Material
Aluminum/Buna-N/Nickel Plated Aluminum/Polyurethane/Zinc Plated Carbon Steel
Duty Cycle
Continuous
Pump Technology
Piston
Pressure Ratio
5:1
Meter Type Included
No Meter Included
Maximum Outlet Pressure
750 psi
Minimum Air Pressure
20 psi
Housing Material
Aluminum
Variable Speed
Yes
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
6.7 gpm
Static Protection
Not Groundable
Hazardous Location Class
Not Rated
Air Inlet Connection Type
NPT
Chemical Compatibility
Oil
Container Cover Type Included
No Cover Included
Discharge Tube Outlet ID
1/2 in
Maximum Air Pressure
150 psi
Standards
CE
Adapter Connection Standard
NPT
Noise Level
72.1 dBA
Mounting Bracket Included
No Mounting Bracket Included

Description

Air Drum Pump, Max. Air Pressure 150 psi, Spout Connection Size Not Applicable, Suction Tube Material Not Applicable, Discharge Connection Type FNPT, Features Built in Thermal Relief, Easy to Maintain, Built in Inlet Strainer, Innovative Air Valve, Modular Air Valve, Pilot Valve, Self-Cleaning Design, Spout Length Not Applicable, Thermal Protection Not Applicable, Bung Connection Dia. 2 in, Air Consumption 18 scfm, Hose Length Not Applicable, Variable Speed Yes, Includes Discharge Hose No
