Shop GREENLEE

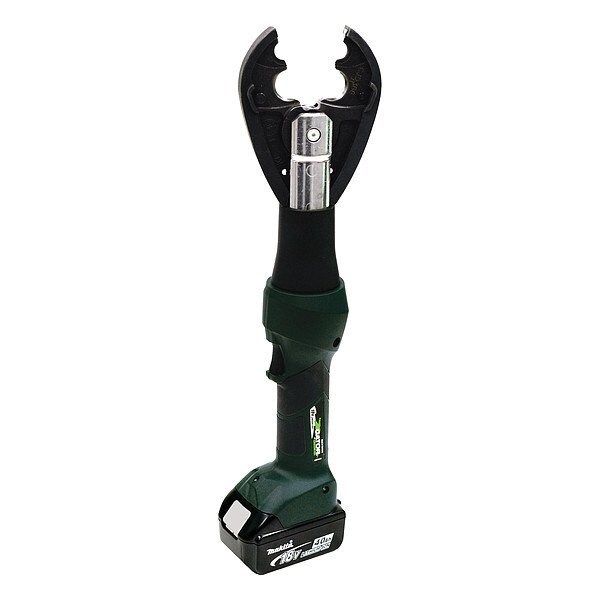

Cordless Wire Crimper, 4 Ah, Bare Tool

  • Mfr # EK425LXDBGB

  • Zoro # G822580572

product price:  $2,376.99
/ea
Free Shipping & Returns

Key Features

Cordless Tool Kit Contents
Bare Tool
Handle Type
In-Line
Head Rotation
350 Degrees
Number of Dies Included
0
Battery Platform
LXT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EK425LXDBGB
Zoro #
G822580572
UPC #
0783310609124
Country of Origin
Germany

Dimensions

Overall Length
18.5 in
Manufacturer Warranty Length
3 yr Limited

Details

Cordless Tool Kit Contents
Bare Tool
Handle Type
In-Line
Head Rotation
350 Degrees
Number of Dies Included
0
Battery Platform
LXT
Minimum Copper Lug Crimping Capacity
10 AWG (Copper H Taps); 6 AWG (Copper Tension Splices)
Head Style
Scissor
Item
Cordless Wire Crimper
Crimp Head Type
Die
Wireless Tool Tracking
No
UL 486A-B Connection Capability
Anderson, Blackburn, Burndy, ILSCO, Panduit, Penn-Union, T and B
Power Source
Cordless
Wireless Technology
Tool Connect
Tool Weight
6.6 lb
Minimum Aluminum Lug Crimping Capacity
6 AWG (All Aluminum Tension Splices); 6 AWG (Aluminum H Taps)
Compatible Die Type
BG, D
Crimping Force
12,000 lb
Maximum Copper Lug Crimping Capacity
2 AWG (Copper H Taps), 2/0 AWG (Copper Tension Splices)
Tool Series
Gator
Maximum Aluminum Lug Crimping Capacity
4/0 AWG (All Aluminum Tension Splices); 4/0 AWG (Aluminum H Taps)
Crimping Capacities
1/0 to 4/0 AWG (Service Entrance Connectors), 10 to 1/0 AWG (Service Entrance Connectors), 10 to 2 AWG (Copper H Taps), 4 to 1/0 AWG (One Piece ACSR), 6 to 2/0 AWG (Copper Tension Splices), 6 to 4/0 AWG (All Aluminum Tension Splices), 6 to 4/0 AWG (Aluminum H Taps)
Voltage
18 V
Features
And, when the Crimping Jaws Need to be Opened before a Crimp is Complete, the Operator can Simply Push a Button on the Back Side of the Tool, Equipped with Bluetooth(TM) Communication Enabled Via the Greenlee Gator Eye App, Features LED Display Screen Communicating Pressure and Battery Levels as Well as Tool Diagnostics with Real-Time Tool Feedback, Intelligent Crimping System Technology Includes a Pressure Sensor that Monitors the Crimping Force of each Crimp and Provides the Operator a Visual and Audible Alert, It is then Ready to Make the Next Crimp, The Crimping Jaws Open Wide to Fit Easily over Connectors, The EK425LX is Operated with One Hand, Leaving the other Hand Free to Position the Cable and Connector, When a Crimp is Fully Completed, the EK425LX Signals the Operator by Automatically Opening the Jaws
Includes Batteries
No

Description

Cordless Wire Crimper, Battery Platform LXT, Maximum Copper Lug Crimping Capacity 2 AWG (Copper H Taps), 2/0 AWG (Copper Tension Splices), Minimum Copper Lug Crimping Capacity 10 AWG (Copper H Taps); 6 AWG (Copper Tension Splices), Maximum Aluminum Lug Crimping Capacity 4/0 AWG (All Aluminum Tension Splices); 4/0 AWG (Aluminum H Taps), Minimum Aluminum Lug Crimping Capacity 6 AWG (All Aluminum Tension Splices); 6 AWG (Aluminum H Taps), Crimping Force 12,000 lb, Compatible Die Type BG, D
