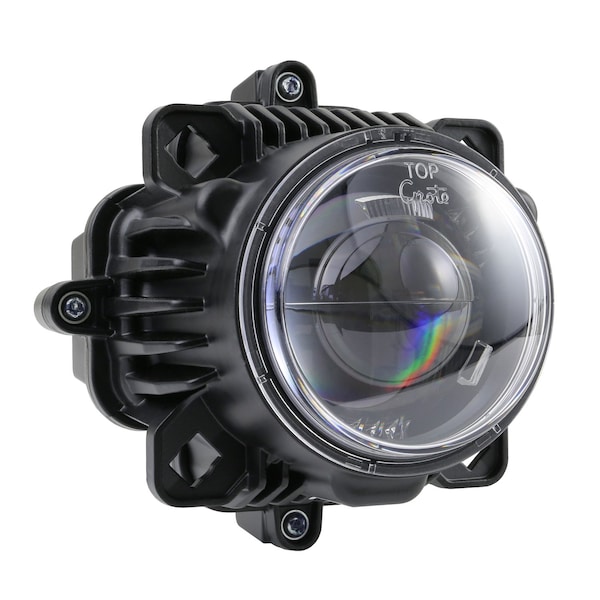

Bi-Led 90Mm Dt Sae
Mfr # 64X21
Zoro # G110877261
product price:Â $282.99
/ea
Free Shipping & Returns
Key Features
Features
Profile Lamp Allows for Installation Flexibility, Protects Against Nearly All Weather Conditions, Rated at IP69k, the Highest Protection Level Against Dust and Water Intrusion, Variable 9 to 32 Voltage Range Allows for Use on a Wide Range of Vehicles
Lighting Technology
LED
Housing Color
Black
Voltage
9-32V DC
Wattage
23 W, 47 W
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 64X21
- Zoro #
- G110877261
- UPC #
- 089373022727
- Country of Origin
- United States
Details
- Item
- Bi-LED 90mm DT SAE
- Features
- Profile Lamp Allows for Installation Flexibility, Protects Against Nearly All Weather Conditions, Rated at IP69k, the Highest Protection Level Against Dust and Water Intrusion, Variable 9 to 32 Voltage Range Allows for Use on a Wide Range of Vehicles
- Lighting Technology
- LED
- Housing Color
- Black
- Voltage
- 9-32V DC
- Wattage
- 23 W, 47 W
- Mount Style
- Recessed
- Current
- 1.6 A @ 13.8V and 0.8 A @ 28V (Low Beam), 3.2 A @ 13.8V and 1.6 A @ 28V (High Beam)
- Maximum Brightness
- 1,300 lm
- Includes Electrical Connection
- Electrical Connection Included
- Lens Material
- Hard-Coated Polycarbonate
- Light Type
- Headlight
- Beam Type
- High Beam, Low Beam
- IP Rating
- IP69K
- Housing Material
- Aluminum
- Minimum Brightness
- 650 lm
- Lamp Life
- 20,000 hr
- Maximum Operating Temperature
- 140 Degrees F
- Electrical Connection
- Integrated 4-Pin DT Connector
- Minimum Operating Temperature
- -40 Degrees F
- Heated
- Heated
- Standards
- ECE R10, ECE R112, ECE R113, ECE R149, FMVSS (Low Beam-108 LB2V) (High Beam-108 UB2)
Description
Bi-LED 90mm DT SAE, Light Type Headlight, Lighting Technology LED, Heated Heated, Beam Type High Beam, Low Beam, Mount Style Recessed, Includes Electrical Connection Electrical Connection Included, Electrical Connection Integrated 4-Pin DT Connector, Housing Material Aluminum, IP Rating IP69K, Current 1.6 A @ 13.8V and 0.8 A @ 28V (Low Beam), 3.2 A @ 13.8V and 1.6 A @ 28V (High Beam)
