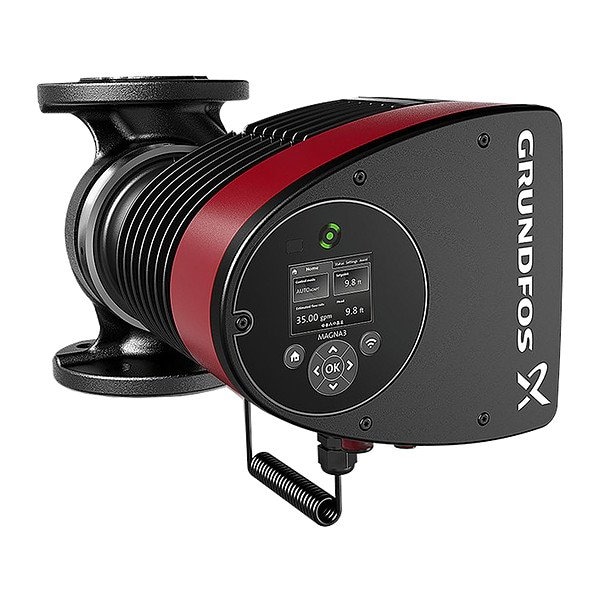

Circulating Pump, Flange, 1/2hp, 208-230VAC

  • Mfr # 98126840
  • Zoro # G715193933
product price:
$
4,424.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Horsepower
1/2 hp
Number of Speeds
Variable
Standards
ASTM A48-250B, cETLus, EN 1561 EN-GJL-250, Proposition 65
Maximum Flow Rate @ 15 Feet of Head
89 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
98126840
Zoro #
G715193933
UPC #
-
Country of Origin
United States

Dimensions

Face to Face Dimension
9 1/2 in
Overall Length
11.46 in
Manufacturer Warranty Length
30 mo
Overall Width
15.82 in
Overall Height
9.45 in
Wire Rope Length
11.46 in
Length
11.46 in

Details

Item
Circulating Pump
Phase
Single
Horsepower
1/2 hp
Number of Speeds
Variable
Standards
ASTM A48-250B, cETLus, EN 1561 EN-GJL-250, Proposition 65
Maximum Flow Rate @ 15 Feet of Head
89 gpm
Maximum Flow Rate @ 10 Feet of Head
117 gpm
Maximum Flow Rate @ 5 Feet of Head
132 gpm
Impeller Material
Composite
Nameplate Voltage
208-230V AC
Media Temperature - Maximum
230 Degrees F
Full Load Current
1.49 A
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Rotor Type
Wet
For Media Type
Clear Water
Frequency
60 Hz
Feet of Head - Maximum
26 ft
Includes Union
No Union Included
Number of Pump Heads
1
Includes Volute
Volute Included
Priming
Self-Priming
Operating Modes
Constant Pressure
Pump Technology
Centrifugal
Motor Design
Permanent Magnet AC Motor
Revolutions Per Minute - Maximum
3,930 RPM
Includes Flange
No Flange Included
Number of Flange Mounting Holes
4
Flow Rate - Maximum
68 gpm
Includes Timer
No Timer Included
Application
Circulating
Pump Casing Material
Cast Iron
Connection Standard
Flange
Pump Construction
2-Piece
Mounting Orientation
Horizontal, Vertical
Media Temperature - Minimum
14 Degrees F
ANSI Flange Class
Class 150
Electrical Connection Type
Plug-In
Thermostat Included
No Thermostat Included
Operating Pressure - Maximum
174 psi
For Low Lead Compliance Level
CE
Connectivity
Bluetooth

Description

Flange

Restrictions
