Shop PENTAIR SHURFLO

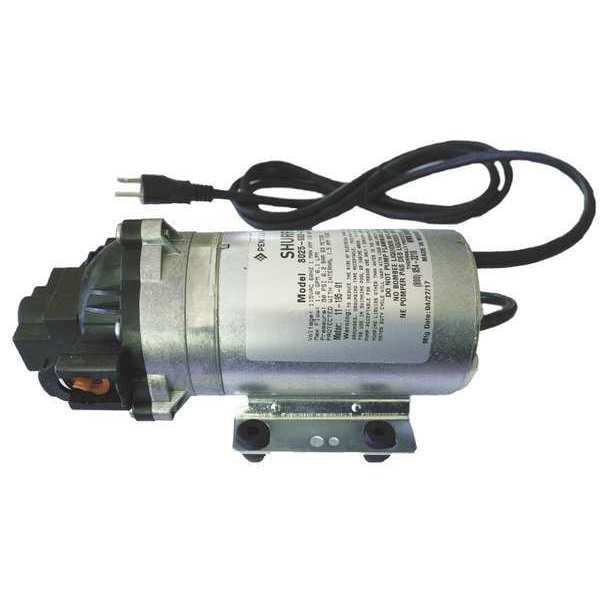

Booster Pump, 1/3 hp, 115V AC, 1 Phase, 3/8 in NPT Inlet Size, 1 Stage, 117 psi Max Pressure

  • Mfr # 8025-933-399

  • Zoro # G7172584

product price:
$
309.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Inlet Size - Pumps
3/8 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8025-933-399
Zoro #
G7172584
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size - Pumps
3/8 in NPT
Outlet Size - Pumps
3/8 in NPT
Length
8 in
Manufacturers Warranty Length
1 yr
Width
4 in
Height
4 in
Max. Dia. Solids
clear water
Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Particle Size Filtered
50 mesh
Manufacturer Warranty Length
1 yr
Discharge Diameter
3/8 in
Inlet Diameter
3/8 in

Details

Item
Booster Pump
Booster Pump Type
Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
115V AC
Phase - Pumps
1
Number of Stages - Pumps
1
Max. Pressure - Pumps
117 psi
Housing Material - Pumps
Stainless Steel
Includes
Cord
Impeller Material
Santoprene
Wetted Materials
NSF
Stages
1
Phase
Single
GPM @ 20 PSI
1.42
HP
1/3
Agency Compliance
UL Listed
Hz
60
Max. Case Pressure
117 psi
Outlet
Quick Connection
Inlet
Quick Connection
Impeller Type
Diaphragm
GPM @ 40 PSI
1.26
Voltage
115
Motor Enclosure
Stainless Steel
For Use With
804-023, Mfr. No. 804-002
Amps
0.9
Pressure Switch Setting
Factory Set
Max. Pressure
117 psi
Housing Material
Stainless Steel
Type
Booster Pump
Motor Ambient Temp. Rating
34 Degrees to 170 Degrees F
GPM @ 60 PSI
1.13
Inlet (In.)
3/8
Discharge Connection Type
FNPT
Pump Operation Type
Electric
Intake Connection Type
FNPT
Standards
CSA, NSF Certified, UL Listed
Nameplate Voltage
115V AC
Flow Rate (Maximum)
1.6 gpm
Operating Pressure (Maximum)
117 psi
Diaphragm Material
Santoprene
Media Temperature (Maximum)
180 Degrees F
Pump Casing Material
Stainless Steel
Media Temperature - Minimum
34 Degrees F
Number Of Chambers
3
Electrical Connection Type
Plug-In
Frequency
60 Hz
Flow Rate @ 20 psi
1.6 gpm
NSF Certifications for Food and Drinking Water
NSF 18
Installation
Floor Standing
Number of Stages
1
Pressure Switch
Yes
Horsepower
1/3 hp
Operating Pressure - Maximum
90 psi
Media Temperature - Maximum
180 Degrees F
Number of Diaphragms
1
Flow Rate @ 40 psi
1.6 gpm
Pump Technology
Diaphragm
Inlet Standard
Quick-Connect
Flow Rate @ 60 psi
1.6 gpm
Motor Design
Permanent Magnet AC Motor
Thermal Protection
Auto
Flow Rate - Maximum
1.6 gpm
Power Source
Corded Electric
Discharge Standard
FNPT
Full Load Current
0.9 A
Application
Replacement Pump
For Media Type
Clear Water
Discharge Gender
Female
Case Pressure - Maximum
117 psi
Priming
Self-Priming
Mounting Orientation
Horizontal, Vertical
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 1.6 gpm, Housing Material Stainless Steel, Includes Cord, Intake Connection Size 3/8 in, Media Temperature (Maximum) 180 Degrees F, Nameplate Voltage 115V AC, Operating Pressure (Maximum) 117 psi, Phase Single, Priming Self-Priming, Pump Operation Type Electric, Tank Capacity Not Applicable, Diaphragm Material Santoprene, Flow Rate @ 40 psi 1.6 gpm, Flow Rate @ 60 psi 1.6 gpm
