Shop GRUNDFOS

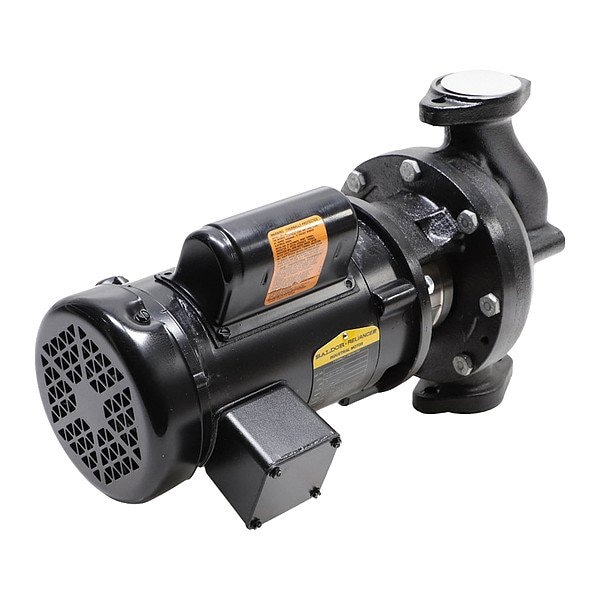

Circulating Pump, Flange, 3/4hp, 208-230VAC

  • Mfr # 96411800

  • Zoro # G016484761

product price:
$
6,745.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Horsepower
0.75
Series
TP
Number of Speeds
1
Pump Technology
Centrifugal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
96411800
Zoro #
G016484761
UPC #
-
Country of Origin
United States

Dimensions

Manufacturer Warranty Length
30 mo
For Inlet Pipe Diameter
1 1/2 in
Face to Face Dimension
11 1/2 in
Overall Length
11.5 in
Overall Height
18.44 in
Overall Width
8 in
Wire Rope Length
11.5 in
Length
11.5 in

Details

Item
Circulating Pump
Phase
Single
Horsepower
0.75
Series
TP
Number of Speeds
1
Pump Technology
Centrifugal
Priming
Self-Priming
Number of Pump Heads
1
Electrical Connection Type
Hardwired
Full Load Current
11.4/6-5.7 A
Includes Flange
No Flange Included
Pump Construction
3-Piece
Rotor Type
Dry
Number of Flange Mounting Holes
2
Nameplate Voltage
208-230V AC
Thermostat Included
No Thermostat Included
Application
Circulating
Operating Pressure - Maximum
145 psi
Motor Enclosure Design
Totally Enclosed Fan Cooled
Pump Casing Material
Bronze
Operating Modes
Constant Speed
For Media Type
Clear Water
Motor Design
Permanent Magnet AC Motor
Impeller Material
Stainless Steel
Feet of Head - Maximum
36 ft
Media Temperature - Minimum
5 Degrees F
Frequency
60 Hz
Maximum Flow Rate @ 30 Feet of Head
71 gpm
Connection Standard
Flange
Media Temperature - Maximum
284 Degrees F
Includes Union
No Union Included
Mounting Orientation
Horizontal, Vertical
Includes Volute
Volute Included
ANSI Flange Class
Class 150
Requires Dedicated Return Line
No Dedicated Return Line Required
Maximum Flow Rate @ 15 Feet of Head
84 gpm
Flow Rate - Maximum
59 gpm
Includes Timer
No Timer Included

Description

TP40-160/2B,3/4hp115/230 1Ph
