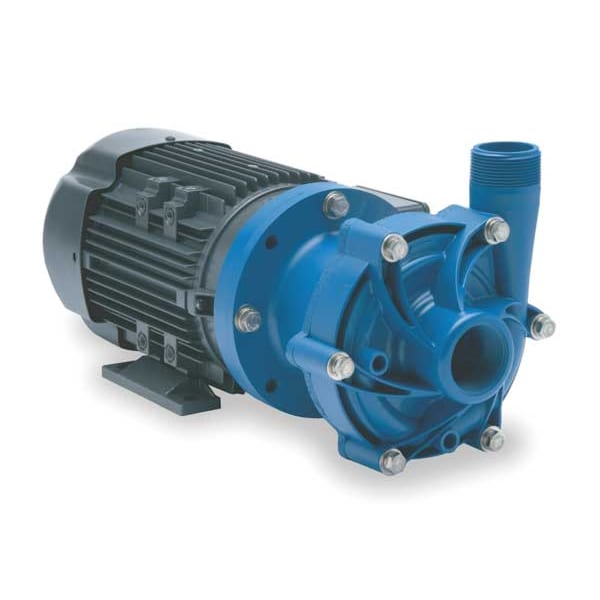

1/2 HP PP Magnetic Drive Pump 115/208-230V 1-1/2" FNPT

  • Mfr # DB7P-M226

  • Zoro # G2097471

product price:
$
1,187.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/208-230
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
33 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DB7P-M226
Zoro #
G2097471
UPC #
-
Country of Origin
United States

Dimensions

Length
17.3 in
Width
7 1/2 in
Height
8 19/64 in
Overall Width
7.5 in
Intake Pipe Size
1 1/2 in
Overall Height
8.3 in
Manufacturers Warranty Length
5 yr
Discharge Pipe Size
1 1/2 in
Overall Length
17.3 in
Impeller Diameter
3 9/50 in
Inlet Diameter
1 1/2 in
Discharge Diameter
1 1/2 in
Wire Rope Length
17.3 in

Details

Item
Magnetic Drive Pump
HP
1/2 hp
Voltage
115/208-230
Inlet
1-1/2 in FNPT
Outlet
1-1/2 in MNPT
Max. Head
33 ft
Operating Pressure
14.2 psi
Housing Material
Polypropylene
GPM of Water @ 6 Ft. of Head
69 gpm
GPM of Water @ 3 Ft. of Head
69 gpm
Motor Type
Induction
Bearing Type
Radial, Thrust
Max. Specific Gravity
1.2
Motor Enclosure
Totally Enclosed Fan Cooled
Gasket Material
FKM
Series
DB7
GPM of Water @ 18 Ft. of Head
58 gpm
Impeller Material
Polypropylene
Full Load Amps
7.6/3.80-3.80 A
Max. Viscosity
100 cps
GPM of Water @ 24 Ft. of Head
50 gpm
GPM of Water @ 15 Ft. of Head
64 gpm
Design
Centrifugal
Application
Acids, Caustics, DI-Water, Plating Solutions
GPM of Water @ 9 Ft. of Head
69 gpm
Mounting
Horizontal
Mounting Orientation
Horizontal
Flow Rate @ 24 ft of Head (Maximum)
50 gpm
Flow Rate @ 3 ft of Head (Maximum)
69 gpm
Viscosity (Maximum)
150 cps
Specific Gravity (Maximum)
1.8
Flow Rate @ 18 ft of Head (Maximum)
58 gpm
Flow Rate @ 9 ft of Head (Maximum)
69 gpm
Motor Mounting Type
Horizontal
Phase
Single
Discharge Pipe Type
MNPT
Media Temperature (Maximum)
180 Degrees F
Flow Rate @ 6 ft of Head (Maximum)
69 gpm
Horsepower (Maximum)
1/2 hp
Feet of Head (Maximum)
33 ft
Chemical Compatibility
Flow Rate @ 15 ft of Head (Maximum)
64 gpm
Full Load Current
7/3.87-3.5A
Priming
Manual
Operating Pressure (Maximum)
14.2 psi
Motor Speed (Maximum)
3,450 RPM
Nameplate Voltage
115/208-230V AC
Intake Pipe Type
FNPT
Ambient Temperature - Minimum
32 Degrees F
Pump Mounting Style
Base-Mounted, Foot-Mounted
Pump Drive Configuration
Close-Coupled
Flow Rate (Maximum)
68 gpm
Drive Coupling Type
Magnetic Coupling
Hazardous Location Class
Not Rated
Case Pressure - Maximum
80 psi
Discharge Rotation Increments
0 Degrees
Pump Design
End Suction
Shut Off Pressure - Maximum
14.2 psi
Pumping Application
Chemical Transfer, Liquid Transfer
Number of Stages
1
Media Temperature - Minimum
35 Degrees F
Motor Design
Capacitor-Start/Run
NPSHr
9 ft
Shaft Seal Type
Sealless
Media Temperature - Maximum
180 Degrees F
Best Efficiency Head
27 ft
Best Efficiency Flow
45 gpm
Ambient Temperature - Maximum
180 Degrees F

Description

Magnetic Drive Pump, Chemical Compatibility Deionized Water, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type MNPT, Feet of Head (Maximum) 33 ft, Flow Rate @ 3 ft of Head (Maximum) 69 gpm, Flow Rate @ 6 ft of Head (Maximum) 69 gpm, Flow Rate @ 9 ft of Head (Maximum) 69 gpm, Flow Rate @ 15 ft of Head (Maximum) 64 gpm, Flow Rate @ 24 ft of Head (Maximum) 50 gpm, Flow Rate @ 50 ft of Head (Maximum) Not Applicable, Horsepower (Maximum) 1/2 hp, Intake Pipe Size 1 1/2 in, Intake Pipe Type FNPT

Restrictions

Hazardous material
