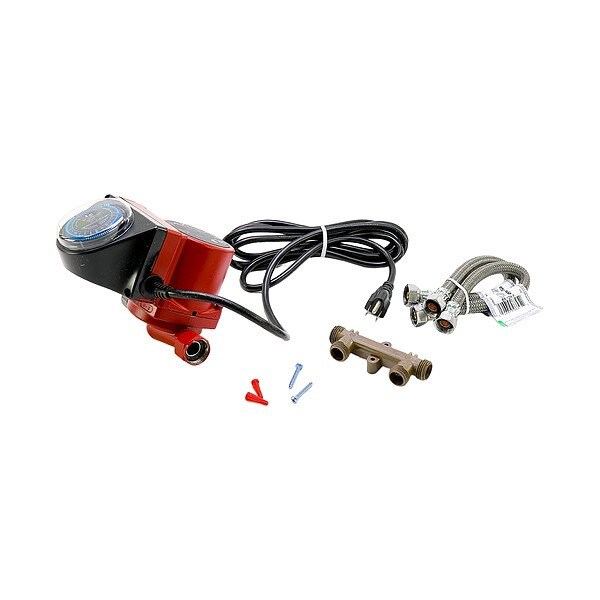

Circulating Pump, UnionNPT, 115VAC

  • Mfr # 595916

  • Zoro # G915988285

product price:
$
547.99
/ea
Free Shipping & Returns

Key Features

Number of Speeds
1
Series
UP
Impeller Material
Composite
Includes
10 ft Line Cord, Thermal Bypass Valve and Hose Kit
Nameplate Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
595916
Zoro #
G915988285
UPC #
-
Country of Origin
United States

Dimensions

Face to Face Dimension
5 1/8 in
Overall Length
5.12 in
Manufacturer Warranty Length
30 mo
For Inlet Pipe Diameter
3/4 in
Overall Height
5.24 in
For Discharge Pipe Diameter
3/4 in
Wire Rope Length
5.12 in
Length
5.12 in

Details

Item
Circulating Pump
Number of Speeds
1
Series
UP
Impeller Material
Composite
Includes
10 ft Line Cord, Thermal Bypass Valve and Hose Kit
Nameplate Voltage
115V AC
Standards
CUL, NSF, UPC
Phase
Single
Pump Casing Material
Stainless Steel
Rotor Type
Wet
Motor Enclosure Design
Totally Enclosed Non-Ventilated
NSF Certifications for Food and Drinking Water
NSF 61
Includes Timer
Timer Included
Application
Circulating
Requires Dedicated Return Line
Dedicated Return Line Required
Motor Design
Permanent Split Capacitor
Thermostat Included
No Thermostat Included
Flow Rate - Maximum
6 gpm
Feet of Head - Maximum
5 ft
Media Temperature - Minimum
35.6 Degrees F
Pump Construction
2-Piece
Electrical Connection Type
Plug-In
Number of Pump Heads
1
Media Temperature - Maximum
150.8 Degrees F
Frequency
60 Hz
Mounting Orientation
Horizontal, Vertical
ANSI Flange Class
Class 150
Pump Technology
Centrifugal
For Media Type
Clear Water
Full Load Current
0.23 A
Power Source
Corded Electric
Connection Standard
Union NPT
Includes Volute
Volute Included
For Low Lead Compliance Level
CE
Includes Flange
No Flange Included
Priming
Self-Priming
Operating Pressure - Maximum
145 psi
Includes Union
No Union Included
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Circulating Pump, Face to Face Dimension 5 1/8 in, Horsepower Not Applicable, Maximum Flow Rate @ 10 Feet of Head Not Applicable, Maximum Flow Rate @ 15 Feet of Head Not Applicable, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Maximum Flow Rate @ 30 Feet of Head Not Applicable, Maximum Flow Rate @ 5 Feet of Head Not Applicable, Series UP, Electrical Connection Type Plug-In, Frequency 60 Hz
