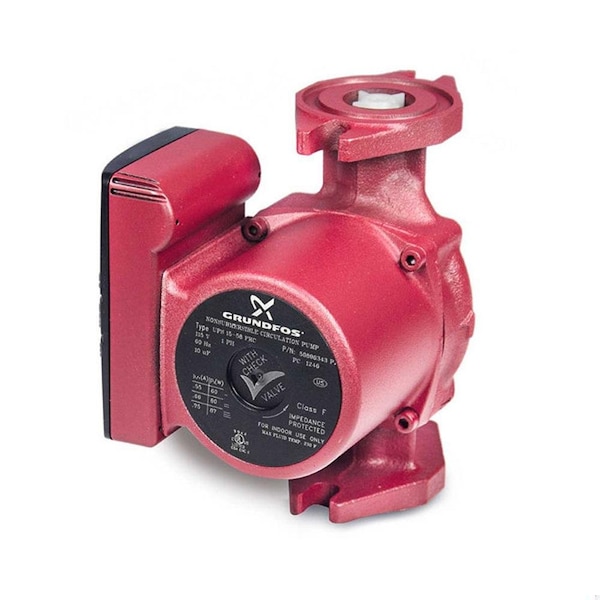

UPS15-58FRC 1/25 HP 115-Volt 3-Speed Rotated Flanged Circulator Pump
Mfr # 59896343
Zoro # G715197177
product price:Â
$
189.99
/ea
Free Shipping & Returns
Key Features
Voltage
115V
Phase
1
Horsepower
1/25 hp
Pump Type
UP
Number of Speeds
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 59896343
- Zoro #
- G715197177
- UPC #
- 5700395856408
- Country of Origin
- United States
Dimensions
- Overall Width
- 4.19 in
- Overall Length
- 6.50 in
- Depth
- 5.25 in
Details
- Voltage
- 115V
- Phase
- 1
- Horsepower
- 1/25 hp
- Pump Type
- UP
- Number of Speeds
- 3
- Connection Type
- Flange
- Pump Housing Material
- Cast Iron
- Application
- Residential Heating
- Color
- Red
Description
The UPS15-58 is the standard for most residential heating systems. The 3-Speed pump motor provides 3 distinct pump curves enabling it to replace over 30 different competitors circulator pumps. Comes with built-in check valve and rotated flange orientation. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only 2 gaskets for sealing. The bearings are lubricated by the pumped liquid.
- Replaces Grundfos Pump - UP15-10FR 59896249, UP15-42FR 59896167
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller, composite, PES
- Cast iron pump housing
