Shop HAM-LET

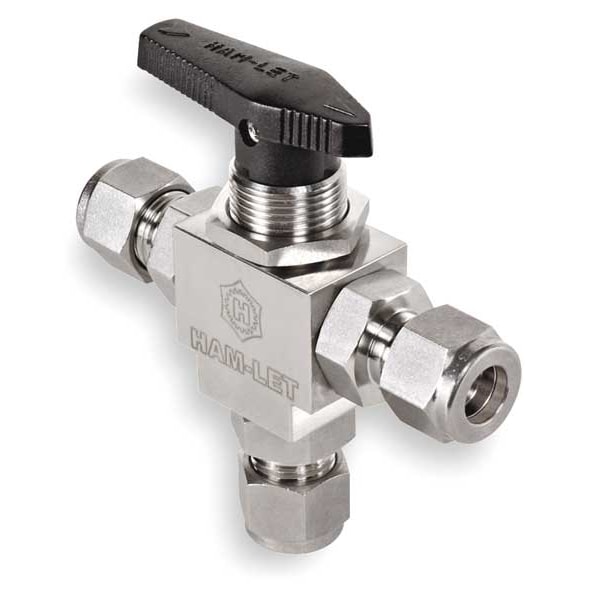

1/2" Compr Stainless Steel Mini Ball Valve 3-Way

  • Mfr # H-6800-SS-L-1/2-CST
  • Zoro # G2170201
product price:
$
631.99
/ea
Free Shipping & Returns

Key Features

Ball Material
316 Stainless Steel
Body Style
3-Way
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Three-Piece
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H-6800-SS-L-1/2-CST
Zoro #
G2170201
UPC #
-
Country of Origin
Iceland
Ball Material
316 Stainless Steel
Body Style
3-Way
Ball Port Style
Standard Port
Valve Ways
3-Way
Valve Structure
Three-Piece
For Media
Water
Connection Type
Comp. x Comp. x Comp.
Item
Manual Three-Way Ball Valve
Stem Material
316 Stainless Steel
Handle Type
Wedge
Temp. Range
-20 Degrees to 280 Degrees F
Stem Type
Blowout Resistant
Seat Material
PCTFE
Standards
ASME, ASTM, CE, MIL-F-18866, SAE
Body Material
316 Stainless Steel
Max. Pressure
6,000 PSI CWP
Features
Panel Mount/1/4 Turn On/Off
Handle Material
Plastic
Ball Valve Product Group
Manual
Seal Material
PTFE
Type
3-Port
Special Features
Actuator Compatible, Short Handle
3-A Standard Compliance
Not Rated
Color - Valve Handle
Black
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Combustible Gas
Not Rated
Coefficient of Volume (Cv)
4.6
Vented Ball Valve
Non-Vented
Outlet Connection Type - Side 1
Compression
Handle - Locking
Non-Locking
Operating Temperature - Maximum
280 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Outlet Connection Type - Side 2
Compression
Flow Pattern
L Flow
Connection Type - Side 1
Compression
Maximum Pressure - Operating
6,000 psi
Inlet Connection Type
Compression
Valve Construction
Three-Piece

Description

Manual Three-Way Ball Valve, Body Material 316 Stainless Steel, Valve Construction Three-Piece, Average Surface Roughness (Ra) Not Applicable, Flow Pattern L Flow, 3-A Standard Compliance Not Rated, Ball Port Style Standard Port, Nominal Valve Size 1/2 in, Inlet Connection Size 1/2 in, Inlet Connection Type Compression, ANSI Flange Class Not Applicable, Outlet Connection Size - Side 1 1/2 in, Handle Material Plastic, Outlet Connection Type - Side 1 Compression
