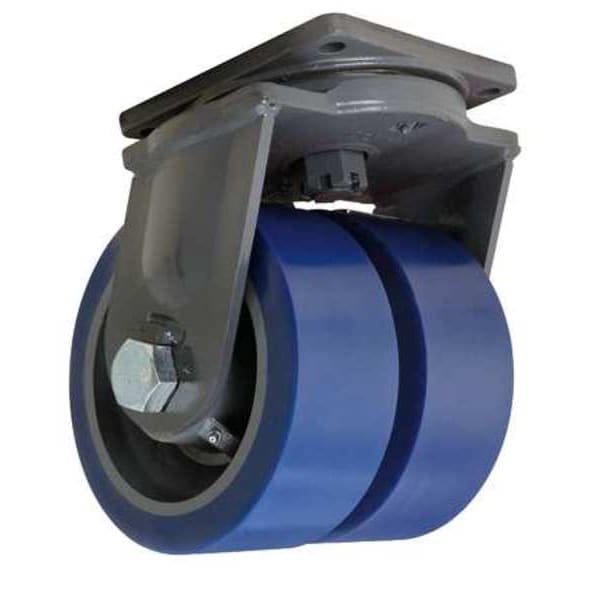

Dual Wheel Caster, Polyurethan, 10, 000 lb.

  • Mfr # S-MDD-104SYT

  • Zoro # G6929666

product price:  $1,305.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Load Rating
10,000 lb
Overall Height
13"
Mounting Bolt Dia.
5/8 in
Wheel Color
Blue
Inside Bolt Hole Spacing
7 in x 7 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-MDD-104SYT
Zoro #
G6929666
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
13"
Mounting Bolt Dia.
5/8 in
Wheel Dia.
10 in
Wheel Width
4 in
Stem Dia.
No Stem
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Height
13 in
Mounting Plate Width
8 1/2 in
Overall Wheel Width
8 in
Bolt Hole Spacing - Length
7 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Length
8 1/2 in
For Axle Dia.
1 1/4 in
Mounting Plate Thickness
5/8 in

Details

Load Rating
10,000 lb
Wheel Color
Blue
Inside Bolt Hole Spacing
7 in x 7 in
Caster Brake Included
No
Caster Plate Hole Pattern
D
Outside Bolt Hole Spacing
7 in x 7 in
Core Color
Gray
Caster Frame Material
Steel
Number of Wheels
2
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Non-Marking
Yes
Item
Plate Caster
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Steel
Includes Thread Guards
No
Swivel Construction
Kingpin
Load Rating Range
6000 lb and Greater
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Raceway Type
Roller
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Load Capacity - Maximum
10,000 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Square
Mounting Hole Type
Hole
Wheel Core Type
Solid
For Surface Type
Concrete
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 10,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
