Shop HAMILTON

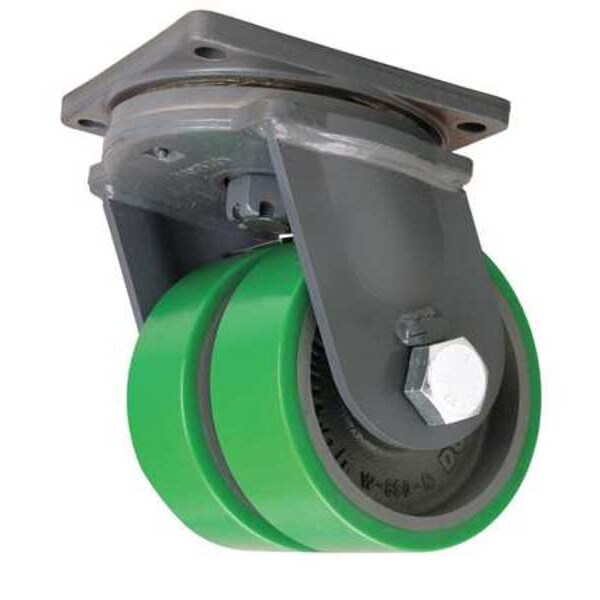

Dual Whl Castr, Polyurethan, 8in., 5000 lb.

  • Mfr # S-MDD-83DT

  • Zoro # G3196146

product price:  $873.99
/ea
Free Shipping & Returns

Key Features

Load Rating
5000 lb
Overall Height
11"
Frame Finish
Enamel
Caster Plate Hole Pattern
D
Wheel Width
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-MDD-83DT
Zoro #
G3196146
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
11"
Wheel Width
3 in
Stem Dia.
No Stem
Wheel Dia.
8 in
Mounting Bolt Dia.
5/8 in
Mounting Height
11 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Bolt Hole Spacing - Length
7 in
Overall Wheel Width
6 in
Mounting Plate Length
8 1/2 in
Mounting Plate Thickness
5/8 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in
For Axle Dia.
1 1/4 in

Details

Item
Plate Caster
Load Rating
5000 lb
Frame Finish
Enamel
Caster Plate Hole Pattern
D
Core Color
Gray
Non-Marking
Yes
Inside Bolt Hole Spacing
7 in x 7 in
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Outside Bolt Hole Spacing
7 in x 7 in
Caster Brake Included
No
Caster Temp. Range Available
Yes
Wheel Color
Green
Number of Wheels
2
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Raceway Type
Roller
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Load Rating Range
3000 to 5999 lb
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Core Material
Iron
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
5,000 lb
For Surface Type
Concrete
Mounting Plate Shape
Square
Wheel Core Type
Solid
Mounting Hole Type
Hole
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 5000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
