  6. Plate Caster, Swivel, Rubber, 6 1/2"H

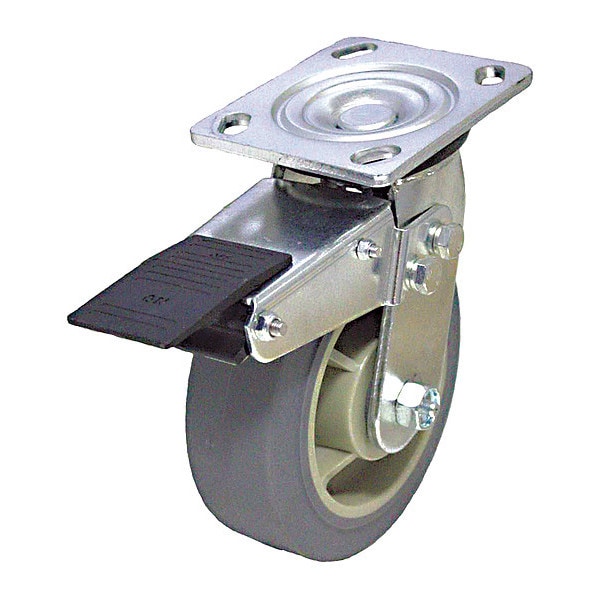

Zoro Select Plate Caster, Swivel, Rubber, 6 1/2"H P21S-PRP050R-14-TB - main

Plate Caster, Swivel, Rubber, 6 1/2"H

  • Mfr # P21S-PRP050R-14-TB

  • Zoro # G3576253

product price:  $45.79
/ea

Key Features

Mounting Height
6 1/2 in
Frame Finish
Zinc Plated
Caster Brake Type
Total Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP050R-14-TB
Zoro #
G3576253
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
6 1/2 in
Wheel Dia.
5 in
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Bolt Hole Spacing - Length
2.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in

Details

Frame Finish
Zinc Plated
Caster Brake Type
Total Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Wheel Color
Gray
Swivel Raceway Type
Double Ball
Caster Frame Material
Steel
Wheel Core Material
Polypropylene
Wheel Bearing Type
Roller
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Tread Color
Gray
Caster Mounting Type
Plate
Includes Thread Guards
No
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Features
Floor Protection, Noise Reduction
Tread
Standard
Swivel Lock Type
Total Lock
Non-Marking
Yes
Standards
DIN EN 12530
Swivel Construction
Kingpin
Thread Guards
No
Core Color
Gray
Load Rating
350 lb
Tread Shape
Standard
Item
Swivel Caster with Total Lock
System of Measurement
Inch
Includes
Total Lock Brake
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Hardness Rating
Firm
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-RP-050x020/050R
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel/Tread Color
Gray
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
350 lb
Load Capacity - Maximum
350 lb
Compatible With
P-RP-050X020/050R
Wheel Hardness Rating
90 Shore A
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Brake Location
Rear
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
