Hamilton Plate Caster, Kingpinless Swivel, Poly, 8 in., 2500 lb S-ZFFM-83DB - main

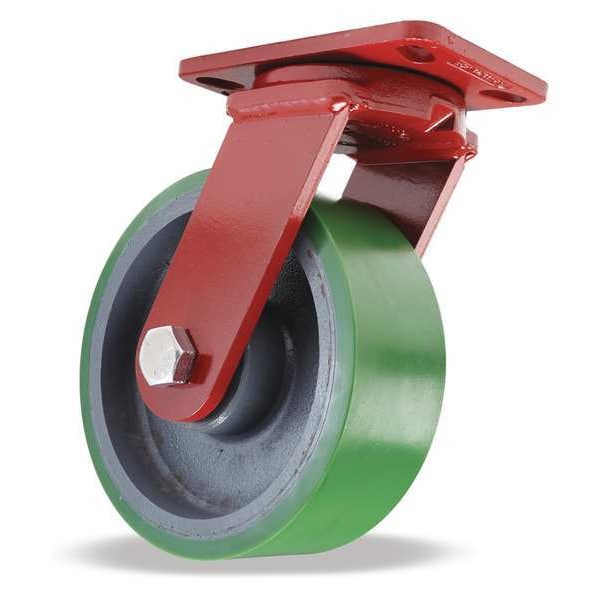

Plate Caster, Kingpinless Swivel, Poly, 8 in., 2500 lb

  • Mfr # S-ZFFM-83DB

  • Zoro # G0383489

product price:  $324.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Thread Guards
No
Caster Frame Material
Steel
Load Rating
2500 lb
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-ZFFM-83DB
Zoro #
G0383489
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Overall Height
10-1/4"
Mounting Height
10 1/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
3/8 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in

Details

Non-Marking
Yes
Thread Guards
No
Caster Frame Material
Steel
Load Rating
2500 lb
Number of Wheels
1
Standards
ANSI ICWM
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Enamel
Wheel Color
Green
Caster Brake Included
No
Replacement Wheel
4DU71
Core Color
Gray
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Features
Sealed Swivel Bearing
Includes
Spanner Bushing
Item
Plate Caster
Caster Temp. Range Available
Yes
Extended Lead
No
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Construction
Kingpinless
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polyurethane
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
2,500 lb
Wheel Hardness Rating
95 Shore A
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
