  11. Plate Caster, Rigid, Heavy-Duty, 5000 lb.

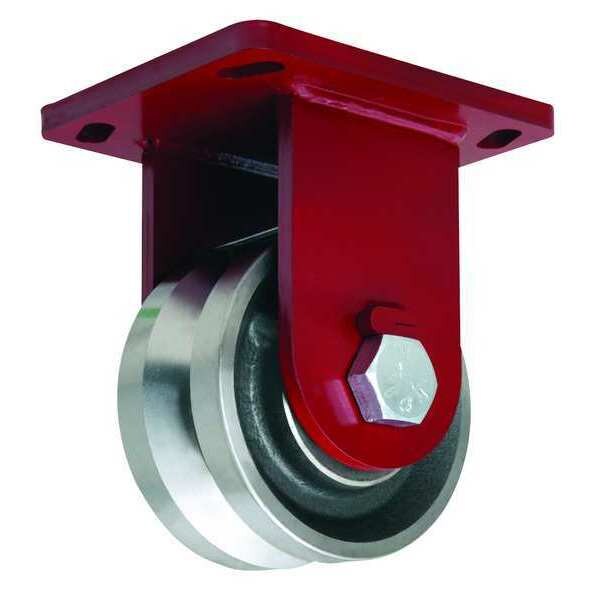

Hamilton Plate Caster, Rigid, Heavy-Duty, 5000 lb. R-EPSD-63FVH - main

Plate Caster, Rigid, Heavy-Duty, 5000 lb.

  • Mfr # R-EPSD-63FVH

  • Zoro # G7426128

product price: $348.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-EPSD-63FVH
Zoro #
G7426128
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 1/2 in
Mounting Plate Size
6-1/2 in x 7-1/2 in
Mounting Plate Thickness
1/2 in
Mounting Bolt Dia.
1/2 in
Overall Height
8-1/2in
Recommended Track Size
1-1/2 in x 1-1/2 in
Inside Slot Spacing - Width
3.875 in
Overall Wheel Width
3 in
Outside Slot Spacing - Width
5.125 in
Inside Slot Spacing - Length
5.75 in
Mounting Plate Length
7 1/2 in
Outside Slot Spacing - Length
6.25 in
Mounting Plate Width
6 1/2 in
For Axle Dia.
1 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
4500 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
V-Groove
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
5-3/4 in x 7-1/2 in
Inside Bolt Hole Spacing
3-7/8 in x 6-1/2 in
Caster Plate Hole Pattern
B
Standards
ANSI ICWM
Features
Corrosion Resistant
Wheel Color
Silver
Caster Temp. Range Available
Yes
Frame Finish
Enamel
Application
Commercial, General Purpose, Industrial, Institutional
Replacement Wheel
Mfr. No. W-630-FVH-1MC
Includes
Spanner
Extended Lead
No
Thread Guards
No
Caster Brake Included
No
Clearance on 1-1/2" Track
9/16 in
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Steel
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
3000 to 5999 lb
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
4,500 lb
Compatible With
W-630-FVH-1MC
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature Range
-40 Degrees to 320 Degrees F
Operating Temperature - Maximum
320 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 4500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
