  11. Plate Caster, Swivel, Cast Iron, 4 in, 1000 lb, B
Shop All Plate Casters
Hamilton

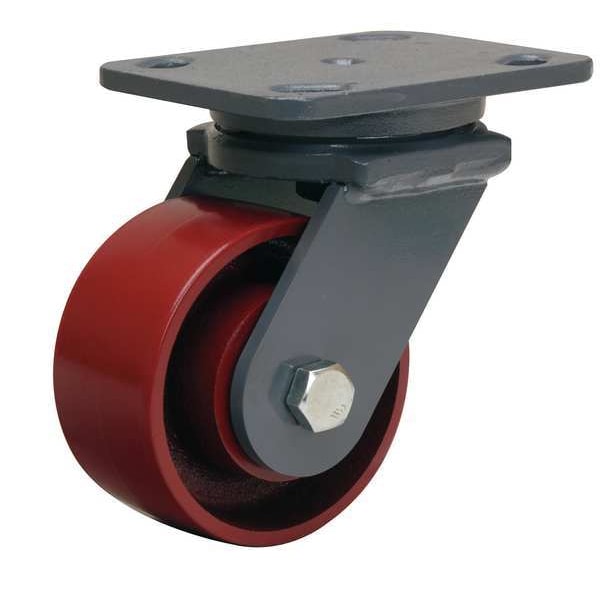

Plate Caster, Swivel, Cast Iron, 4 in, 1000 lb, B

product price: $122.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Metal
See all product information

Product Information

Dimensions

Overall Height 5-5/8"
Wheel Dia. 4 in
Wheel Width 2 in
Stem Dia. No Stem
Caster Plate Size 4" x 5"
Mounting Bolt Dia. 1/2 in
Plate Size 4" x 5"
Mounting Plate Size 4 in x 5 in
Mounting Height 5 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Heavy-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Metal
Load Rating 1000 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Standards ICWM
Extended Lead No
Wheel Color Red
Caster Core Material Cast Iron
Non-Marking Yes
Caster Wheel Bearings Ball
Caster Max. Temp. 200 Degrees F
Thread Guards No
Application Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available Yes
Core Color Red
Item Standard Plate Caster
Caster Min. Temp. -40 Degrees F
Plate Caster Bolt Hole Pattern B
Replacement Wheel 4DU77
Caster Temp. Range -40 Degrees to 200 Degrees F
Inside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Caster Swivel Lock Type No Lock Included
Caster Plate Hole Pattern B
Caster Plate Thickness 1/4"
Caster Raceway Single Ball
Plate Thickness 1/4"
Frame Finish Enamel
Durometer 188 BHN
Includes Spanner Bushing
Outside Bolt Hole Spacing 3 in x 3 in
Caster Product Group Swivel Caster
Caster Frame Material Steel
Frame Material Forged Steel
Caster Brake Type No Brake Included
Load Rating Range 1000 to 2999 lb
Swivel Lock Type No Lock Included
Number of Mounting Holes 4
Wheel/Tread Material Iron
Wheel Bearing Type Precision Ball
Wheel/Tread Hardness Rating Extra Hard
Wheel Core Material Cast Iron
Includes Thread Guards No
Wheel/Tread Hardness 188 BHN
Swivel Construction Kingpin
Swivel Raceway Type Single Ball
Tread Shape Standard
Mounting Plate Bolt Hole Pattern B
Wheel/Tread Color Red

Description

Swivel, Standard Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
