Shop HAMILTON

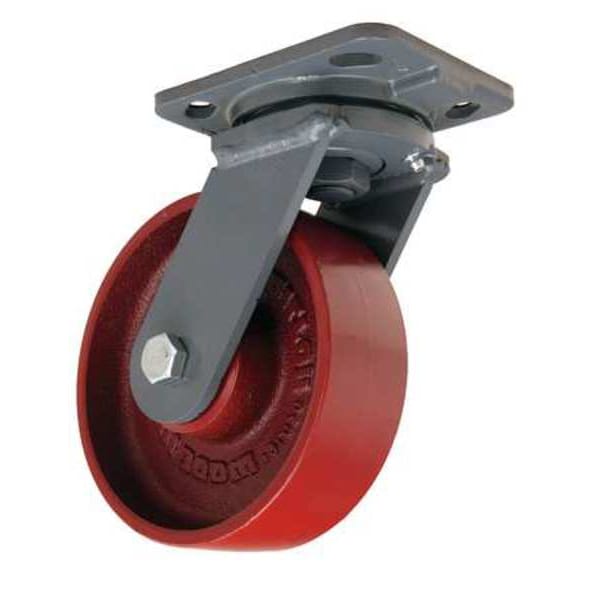

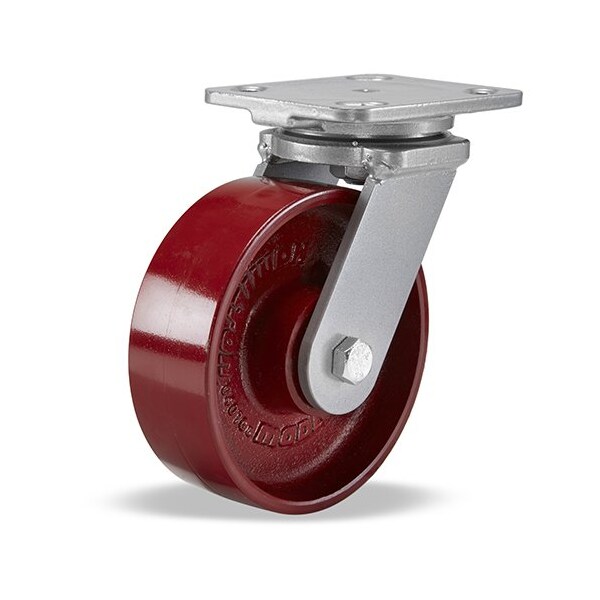

Plate Caster, Swivel, Cast Iron, 6 in., 1400 lb, B

  • Mfr # S-WH-6MB

  • Zoro # G3491056

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI ICWM
Mounting Bolt Dia.
1/2 in
Number of Wheels
1
Overall Height
7-1/2"
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WH-6MB
Zoro #
G3491056
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2"
Wheel Width
2 in
Stem Dia.
No Stem
Wheel Dia.
6 in
Mounting Plate Size
4 in x 5 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
1/4 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
5 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in

Details

Standards
ANSI ICWM
Number of Wheels
1
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Enamel
Caster Frame Material
Steel
Caster Brake Included
No
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Thread Guards
No
Includes
Spanner Bushing
Extended Lead
No
Replacement Wheel
4DU78
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
B
Load Rating
1400 lb
Non-Marking
Yes
Outside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Red
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Item
Plate Caster
Core Color
Red
System of Measurement
Inch
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Wheel Core Material
Iron
Includes Thread Guards
No
Wheel/Tread Material
Iron
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Wheel/Tread Color
Red
Wheel Type
Flat-Free
Load Capacity - Maximum
1,400 lb
Wheel Hardness Rating
170 BHN
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
