  11. Plate Caster, Swivel, Nylon, 9 3/4"H

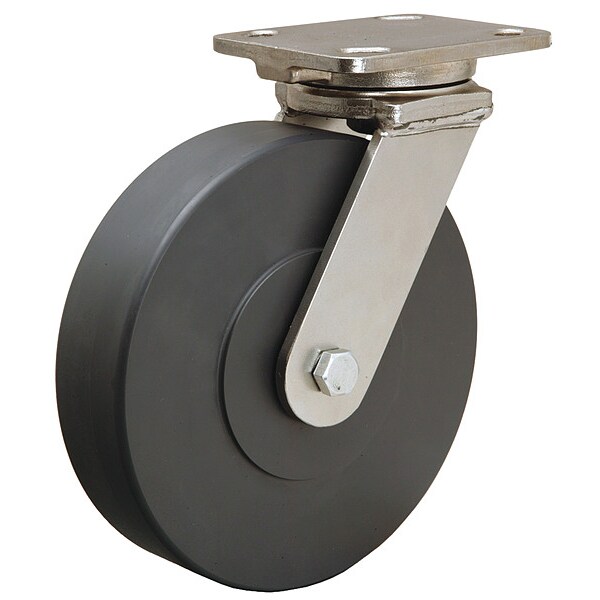

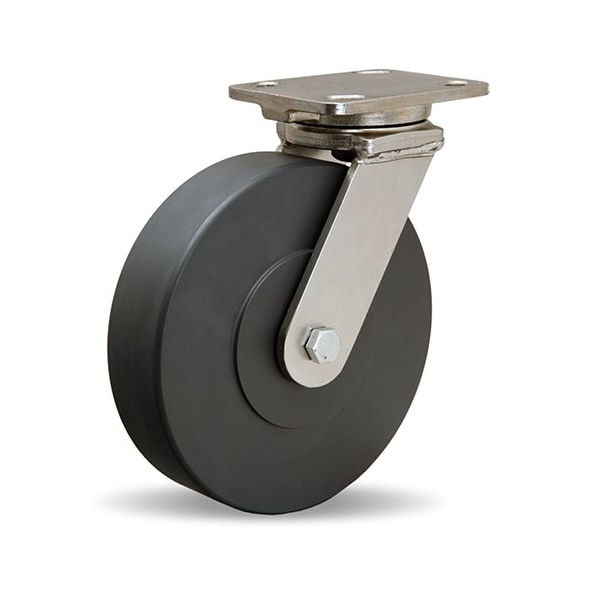

Hamilton Plate Caster, Swivel, Nylon, 9 3/4"H S-WHS-8NYSB-4SL-SFB - main

Plate Caster, Swivel, Nylon, 9 3/4"H

  • Mfr # S-WHS-8NYSB-4SL-SFB

  • Zoro # G9073100

product price: $745.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Side Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-WHS-8NYSB-4SL-SFB
Zoro #
G9073100
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 3/4 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Swivel Radius
6 5/16 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
5 in
Outside Slot Spacing - Width
3 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Side Brake
Load Rating
1600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Swivel Raceway Type
Double Ball
Tire Style
Tubeless
Wheel/Tread Hardness Rating
Hard
Wheel Core Type
Solid
Series
Workhorse Stainless
Wheel Type
Flat-Free
Wheel Core Material
Nylon
Swivel Construction
Kingpin
Brake Location
Right Side
Frame Finish
Powder Coated
Includes Mounting Fasteners
No
Operating Temperature Range
-30 Degrees to 220 Degrees F
Load Rating Range
1000 to 2999 lb
With Toe Plate
No
Standards
ANSI ICWM
ESD Conductive
Yes
For Surface Type
Concrete
Swivel Lead
2 3/8 in
Includes Spanner Bushing
Yes
Swivel Bearing Seal Type
Open
Leveling Caster
No
Tread
Flat
Includes Thread Guards
No
NSF Listed
No
Swivel Lock Type
4-Position Swivel Lock
Wheel Bearing Material
Stainless Steel
Frame Color
Silver
Frame Construction
Forged
Load Capacity - Maximum
1,600 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 1600 lb, Swivel Lock Type 4-Position Swivel Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
