Shop HAMILTON

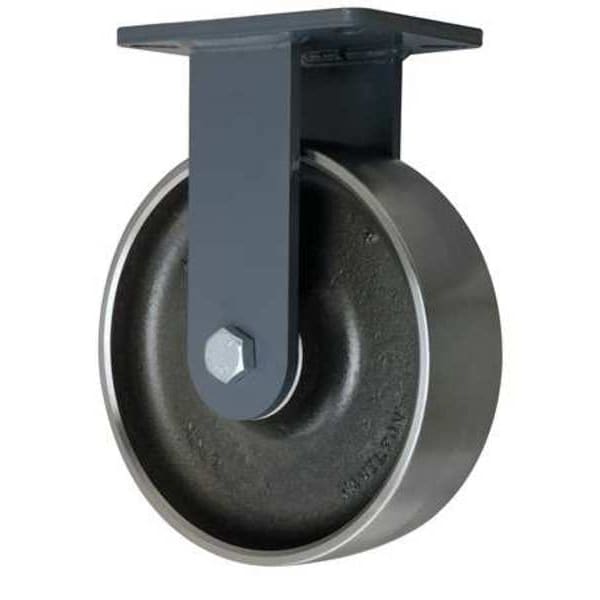

Plte Caster, Rgd, Forgd Stel, 10 in, 6000 lb

  • Mfr # R-SEC-13FSB

  • Zoro # G3114754

product price:  $249.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Frame Finish
Enamel
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-SEC-13FSB
Zoro #
G3114754
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Overall Height
12-1/2"
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Mounting Height
12 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Width
3.375 in

Details

Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Frame Finish
Enamel
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
ANSI ICWM
Thread Guards
No
Item
Plate Caster
Non-Marking
Yes
Core Color
Silver
Caster Sub-Type
Rigid
Wheel Color
Silver
Replacement Wheel
4DU76
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Load Rating
6000 lb
Includes
Spanner Bushing
Extended Lead
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Included
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Steel
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Load Rating Range
6000 lb and Greater
Includes Thread Guards
No
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
6,000 lb
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
170 BHN
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 6000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
