  6. Plte Caster, Rgd, Phenolic, 6 in., 1200 lb, B

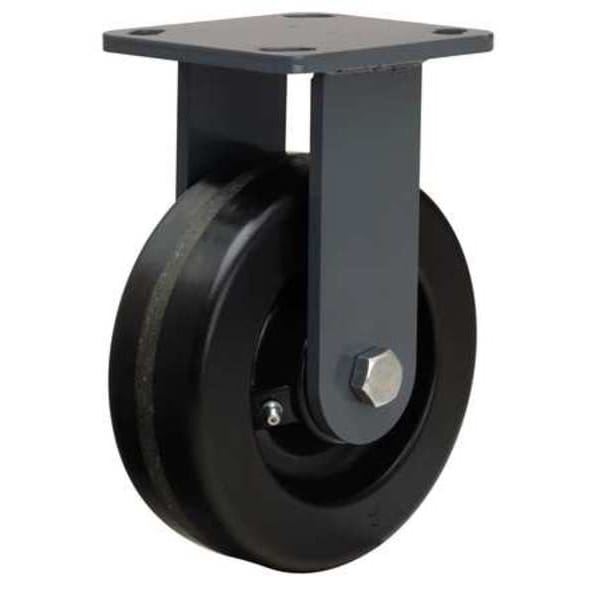

Hamilton Plte Caster, Rgd, Phenolic, 6 in., 1200 lb, B R-WH-6P - main

Plte Caster, Rgd, Phenolic, 6 in., 1200 lb, B

  • Mfr # R-WH-6P

  • Zoro # G2777677

product price:  $62.05
/ea

Key Features

Number of Wheels
1
Wheel Color
Black
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel Width
2 in
Thread Guards
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-WH-6P
Zoro #
G2777677
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Mounting Bolt Dia.
1/2 in
Mounting Height
7 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Length
5 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
1/4 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Plate Caster
Number of Wheels
1
Wheel Color
Black
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Non-Marking
Yes
Caster Temp. Range Available
Yes
Extended Lead
No
Standards
ANSI ICWM
Replacement Wheel
23EM59
Frame Finish
Enamel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Black
Caster Brake Included
No
Caster Plate Hole Pattern
B
Caster Sub-Type
Rigid
Includes
Spanner Bushing
Load Rating
1200 lb
Caster Frame Material
Steel
Outside Bolt Hole Spacing
3 in x 3 in
Wheel Bearing Type
Roller
Wheel Core Material
Phenolic
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Swivel Construction
Kingpin
Caster Brake Type
No Brake
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
1,200 lb
Wheel Hardness Rating
90 Shore D
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
