Hamilton

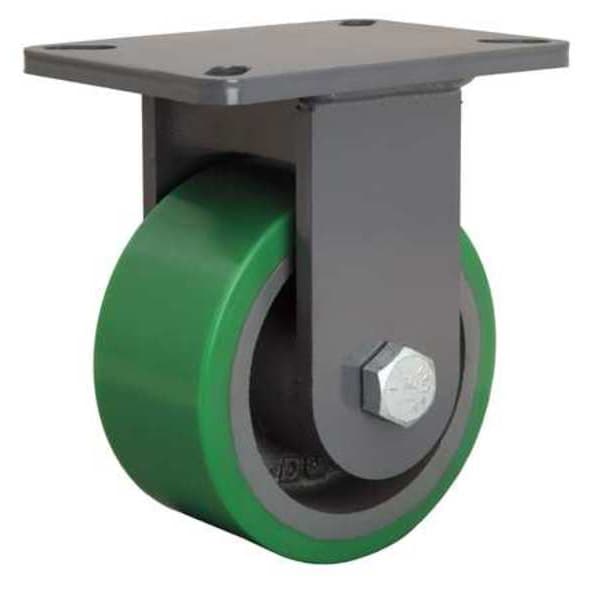

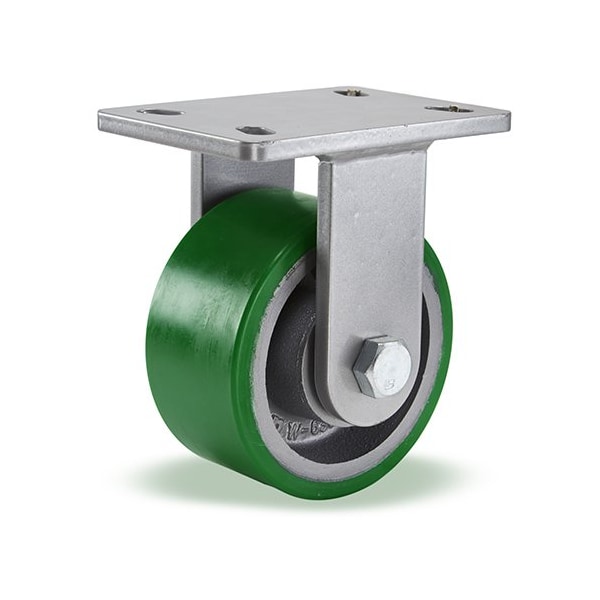

Plte Caster, Rgd, Poly, 6 in., 2200 lb.

product price: $130.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Medium-Duty
  • Caster Product Group Rigid Caster
  • Load Rating 2200 lb
See all product information

Product Information

Dimensions

Wheel Dia. 6 in
Wheel Width 3 in
Overall Height 8"
Mounting Height 8 in
Mounting Plate Size 5 1/4 in x 7 1/4 in
Mounting Bolt Dia. 1/2 in
Caster Plate Size 5-1/4" x 7-1/4"
Plate Size 5-1/4" x 7-1/4"

Details

Item Standard Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Medium-Duty
Caster Product Group Rigid Caster
Load Rating 2200 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Wheel/Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 4-1/8 in x 6-1/8 in
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Enamel
Caster Frame Material Steel
Wheel Core Material Cast Iron
Core Color Gray
Application Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Features Floor Protective
Standards ICWM
Includes Spanner Bushing
Caster Temp. Range -40 Degrees to 200 Degrees F
Caster Plate Hole Pattern A
Durometer 90 Shore A
Caster Max. Temp. 200 Degrees F
Wheel Color Green
Caster Temp. Range Available Yes
Caster Plate Thickness 1/2"
Caster Min. Temp. -40 Degrees F
Replacement Wheel 4DU69
Plate Thickness 1/2"
Caster Core Material Cast Iron
Plate Caster Bolt Hole Pattern A
Caster Wheel Bearings Ball
Extended Lead No
Frame Material Steel
Thread Guards No
Caster Swivel Lock Type No Lock Included
Tread Shape Standard
Wheel/Tread Hardness 95 Shore A
Swivel Construction Kingpin
Includes Thread Guards No
Load Rating Range 1000 to 2999 lb
Wheel/Tread Color Green

Description

Rigid, Standard Plate Caster, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
