  11. Single-Flangd Castr, Cast Irn, 8in, 3000 lb

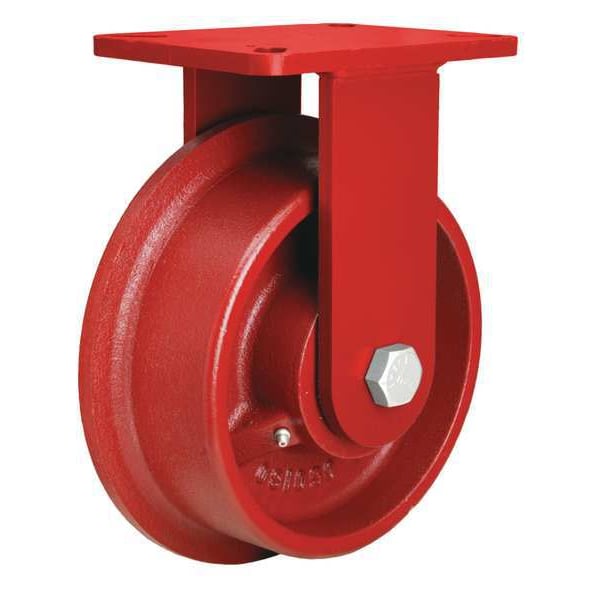

Hamilton Single-Flangd Castr, Cast Irn, 8in, 3000 lb R-EHD-FT82H - main

Single-Flangd Castr, Cast Irn, 8in, 3000 lb

  • Mfr # R-EHD-FT82H

  • Zoro # G7529146

product price: $262.63
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-EHD-FT82H
Zoro #
G7529146
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
9 1/2 in
Mounting Plate Size
5-1/2 in x 7-1/2 in
Mounting Plate Thickness
1/2in
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Load Rating
3000 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
188 BHN
Number of Mounting Holes
4
Tread Shape
Single Flange
Caster Frame Material
Steel
Core Color
Red
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
D
Replacement Wheel
Mfr. No. WFT-82H-1
Wheel Color
Red
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Caster Brake Included
No
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Swivel Construction
Kingpin
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Iron
Swivel Lock Type
No Lock Included
Compatible With
WFT-82H-1
Load Capacity - Maximum
3,000 lb
Operating Temperature Range
-40 Degrees to 450 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
450 Degrees F

Description

Rigid, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Single Flange
