Shop HARRINGTON

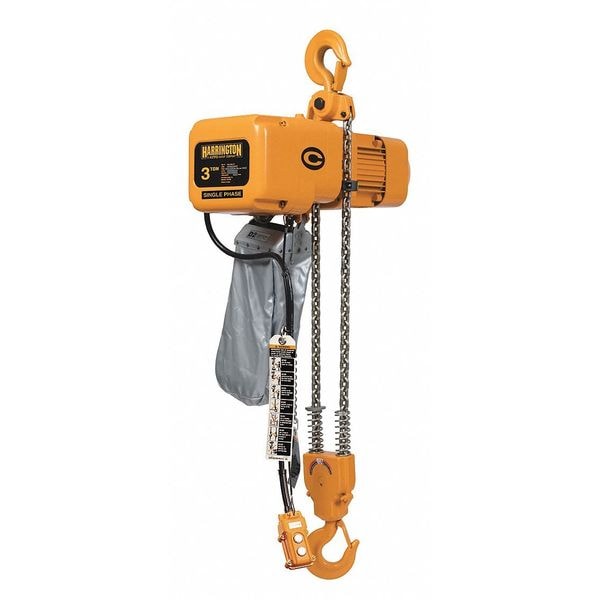

Electric Chain Hoist, 6,000 lb, 20 ft, Hook Mounted - No Trolley, 115/230V AC, Yellow

  • Mfr # SNER030C-20

  • Zoro # G0297534

product price:
$
6,406.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
Lift Speed
3.5 fpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SNER030C-20
Zoro #
G0297534
UPC #
-
Country of Origin
Japan
Color
Yellow
Electric Hoist Item
Chain Hoist
Hoist Lift
20 ft
Hoist Mount
Hook Mounted - No Trolley
Includes
Chain Container
Lift Speed
3.5 fpm
Load Capacity
6,000 lb
Min. Between Hooks
29 1/2 in
Motor HP
1.2 hp
Phase
1
Standards
ASME B30.16, ASME HST-1, NFPA 70
Voltage
115/230V AC
Fits Brand
Harrington Hoists Inc
Classification
H4
Brake
Pull Rotor Motor
Lubrication
Oil Bath
Number of Speeds
1
Control Cord
16 ft
Item
Electric Chain Hoist
Thermal Protection
Not Available and Not Included
Clutch
Friction
Trolley Configuration
Hook Mounted
Finish
Electrostatic Enamel
Control
110V Push Button Control Pendant
Amps @ Low Volts
23.9 A
Reeving
2
Features
Extreme-Duty, Fan-Cooled Motor, Heavy Cast-Iron Chain Guide, Friction Clutch, Oil Bath-Lubricated, Heat-Treated Gearing, Self-Adjusting Maintenance-Free Brake
Material
Die Cast Aluminum
Number of Load Chains
1
Brake Type
Pull Rotor
Chain Finish
Nickel Plated
Starts and Stops per Hour
360
Motor Horsepower
1 1/4 hp
Fixed Lift Speed
3.5 fpm
Headroom
29 1/2 in
Includes Brake
Brake Included
Controls
Push Button Pendant
Body Material
Aluminum
For Outdoor Use
Yes
Lifting Hook Type
Swivel Hook with Safety Latch
Hoist IP Rating
IP55
Chain Material
Alloy Steel
Includes Clutch
Clutch Included
Mount Type
Hook Mounted - No Trolley
Number of Reeves
2
Body Finish
Enamel
Clutch Type
Friction Clutch
Resistance Properties
Corrosion Resistant
Chain Grade
Grade 80
Included Components
Chain Container, Pendant, Safety Latch Hook
Programmable
Non-Programmable
Duty Classification
H4
Maximum Lifting Capacity
6,000 lb
Overload Protection Included
Yes
Pendant IP Rating
IP65
Current at Min. Voltage
23.9 A
Lifting Hook Material
Carbon Steel
Current at Max. Voltage
12 A
Operating Voltage
115/230V AC

Description

Electric Chain Hoist, Duty Classification H4, Mount Type Hook Mounted - No Trolley, Maximum Lifting Capacity 6,000 lb, Number of Speeds 1, Programmable Non-Programmable, Fixed Lift Speed 3.5 fpm, Minimum Lift Speed Not Applicable, Maximum Lift Speed Not Applicable, Trolley Speed Not Applicable, Maximum Lifting Length 20 ft, Current at Minimum Voltage 23.9 A, Current at Maximum Voltage 12 A, Motor Horsepower 1 1/4 hp, Operating Voltage 115/230V AC, Headroom 29 1/2 in
